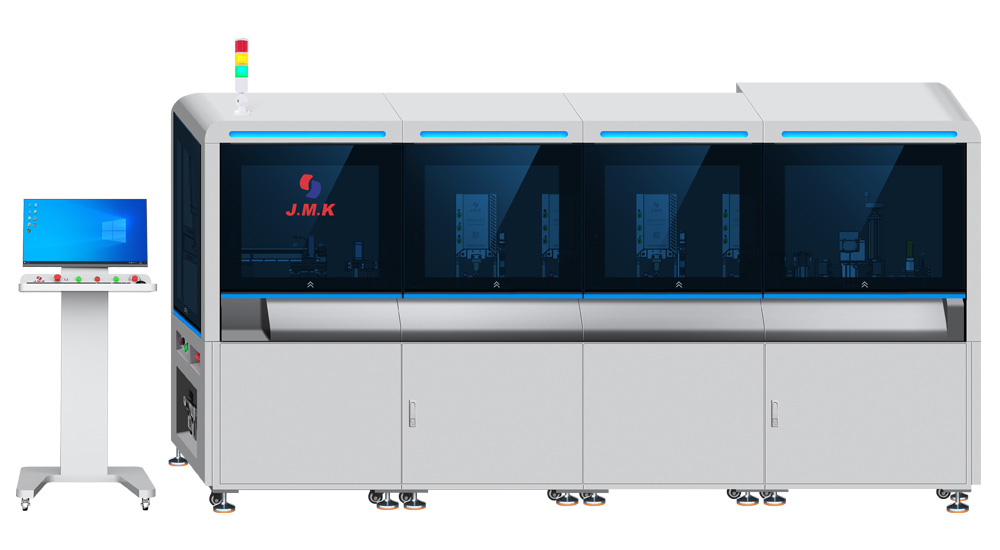

JM-201U Dual-end Number Tube Insertion & Multi Station Terminal Crimping Machine

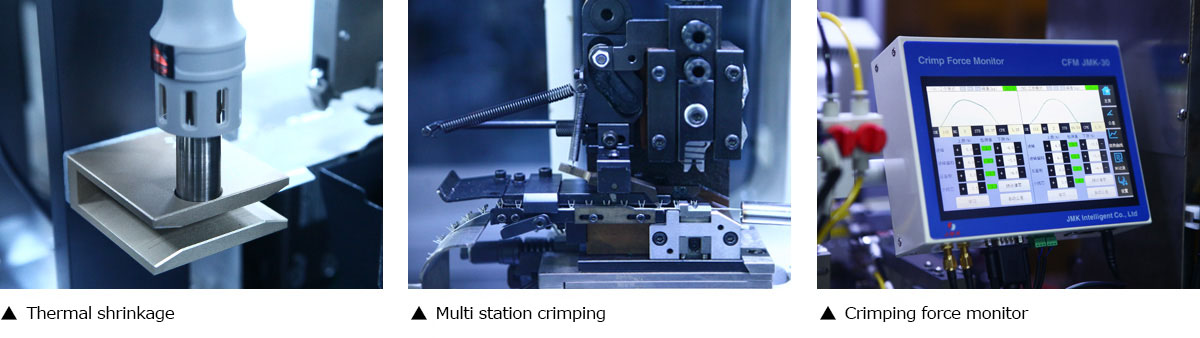

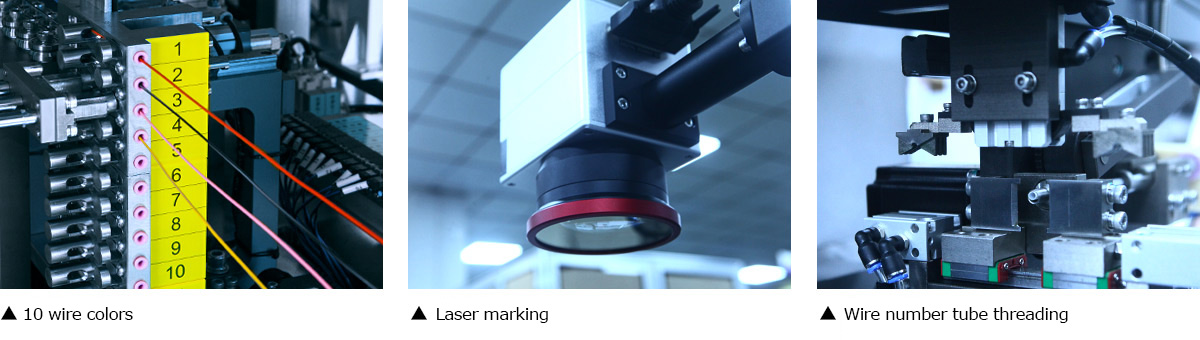

JM-201U Automatic dual-end number tube insertion and multi station terminal crimping machine, Supports 10 wire colors, multi station terminal crimping, laser marking, dual-end threading with number tube and heat shrink. Flexible switching of multiple wire types, no need to replace the fixture. streamlining design, high efficienc, capacity of approximately 1800-2300pcs/h. Optional JMK intelligent crimping force monitor and CCD visual inspection system, for full process quality monitoring.
Product Video

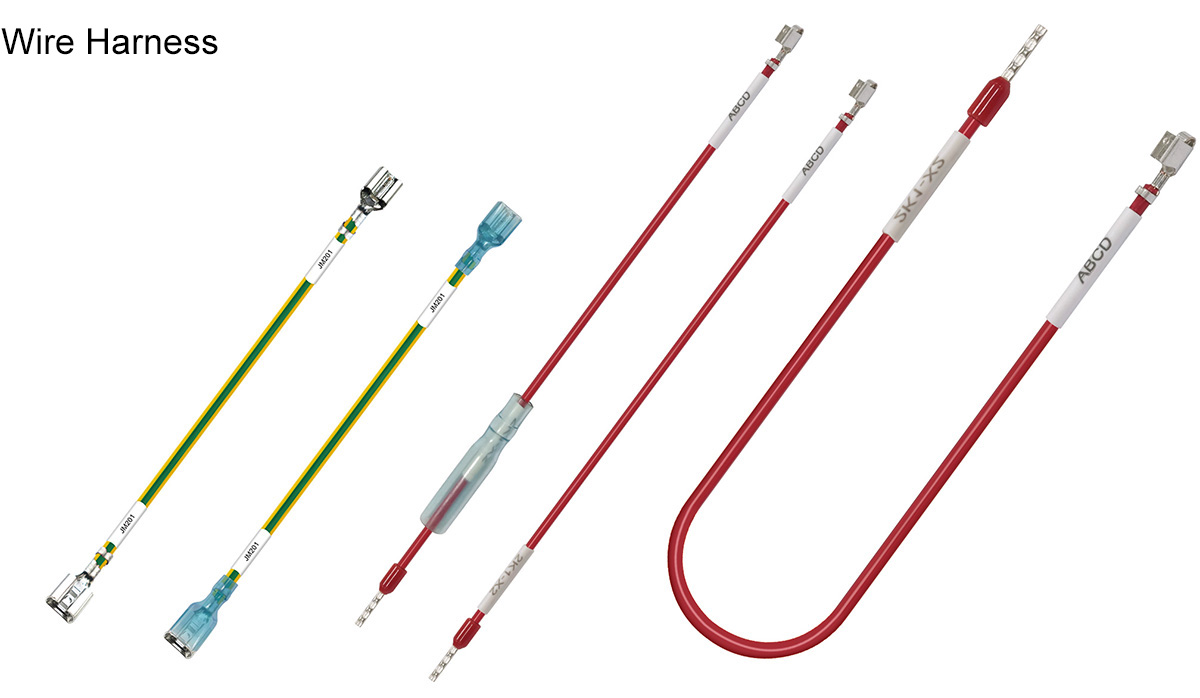

The JM-201U can be widely applied in the electrical wiring industry, such as harness processing for high and low voltage cabinets, complete distribution cabinets, switchgear cabinets, and control cabinets. The equipment is primarily designed for automated secondary harness processing, adapting to diverse production needs.
|
Model |
JM-201U Full-automatic Multi-position End Threading and Numbering Tube Terminal Machine |
|
Function |
Wire cutting,single/dual-end stripping,multi station terminal crimping,laser printing,tube inserting and heat shrink. |
|
Wire diameter |
Ten colors |
|
Cutting length |
260mm~9999mm |
|
Strip length |
0~15mm |
|
Insertion spec |
JM-201U Fully Automatic Multi-station Tube Threading Machine Sleeve Length 12~30mm,Center 2.0~4.0mm |
| Printing type | Laser |
|
Crimping force |
2T Servo Crimping Machine x4(Customized) |
|
Detecting device |
Air pressure detection, no wire/no terminal detection; Wire cutting length detection. Optional: CCD, Compression force monitoring. |
|
Control |
PLC |
|
Compressed air |
0.5~0.7Mpa(about 130N/min~170N/min) |
|
Power supply |
AC220V/50/60Hz 16A |
| Size |
L3600xW850xH1900mm |
| Weight | About 2000kg |
