JM-555A Automatic Single/double end waterproof plug threading crimping machine
Auto Crimp Machines All in One >Warranty Period:24 Months
Degree of automation:Automatic
Certificate:CE/ISO:9001/ISO45001
Flexible configuration of workstations


Waterproof plug threading crimping machine
JM-555A Automatic Single/double end waterproof plug threading crimping machine

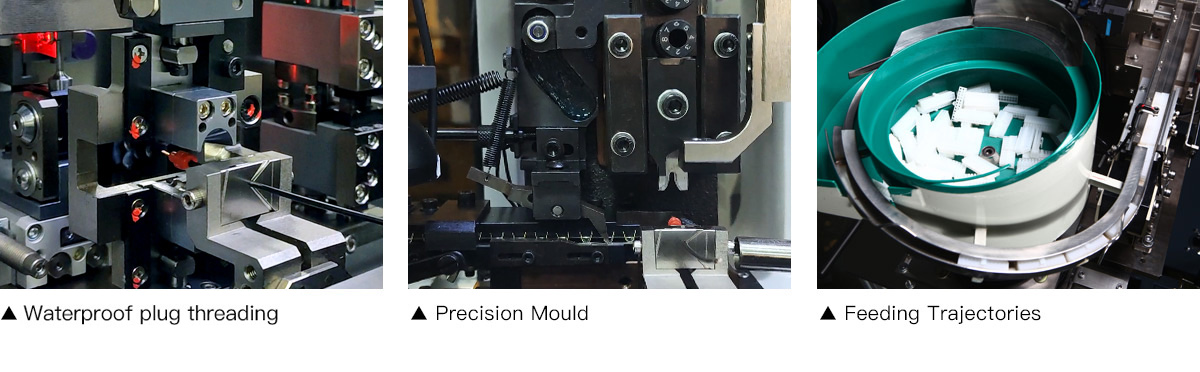

Wire seal station

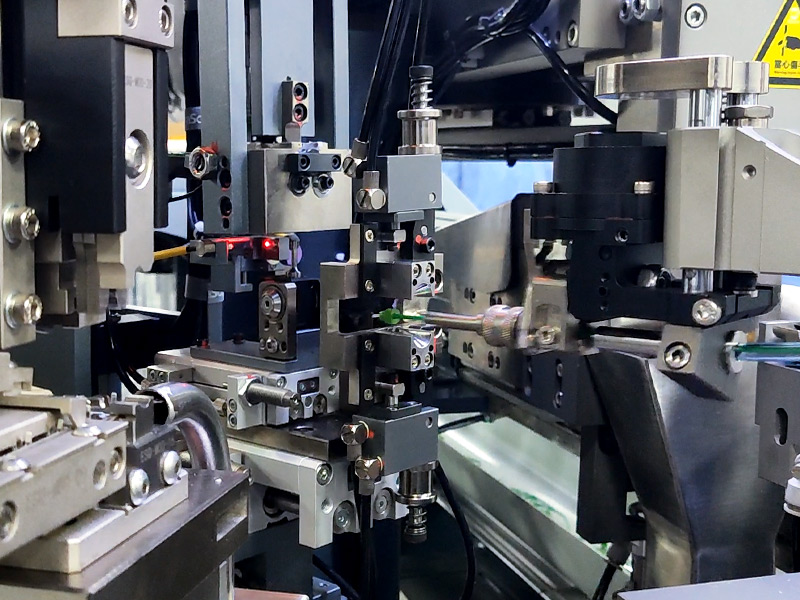

JM-555A Wire seal station


Product Introduction:

What JM-555A Single/double end waterproof plug threading crimping machine Can Do?
JM-555A are able to do fixed-length cable/wire cutting, single/double end half-stripping or full-stripping, single/double end crimping, waterproof plug threading. And all processes can be completed synchronously.

Product Feature:

1.International-grade design with a compact and streamlined structure;

2.Equipped with a flexible wire feeding system that protects the wire surface while ensuring high wire length accuracy;

3.Utilizes a servo-driven crimping system to guarantee stable and consistent crimping precision;

4.User-friendly PC interface with graphical display for intuitive and simplified operation;

5.Built-in pressure management system enables real-time monitoring, automatic defect detection, and removal;

6.Supports customized processing for FAKRA wire harnesses and ultra-short new energy harnesses;

Technical Parameters:

Model
    JM-555-----JM-555A-----JM-555B
Power
    13KW(Max)
Capacity
   1000~5200pcs/H(shortest cut wire)
Gas source
   0.5-0.7MPa
Air consumption
   3m/h
Can cut off the length
   50-9999mm
Can cut off precision
   ≤1000mm,±1mm,21000mm,((1000mm+0.2%xL)
Peeling length
   0.1-16mm
Machinable wire diameterx2
   0.13-6.0mm2(26-10 AWG)
Send speed
   8-12m/s(Max)
Crimp ability
   20KN(tonnage can be customized)
Crimp travel
   30mm(40mm Optional)
Ambient temperature
   0~40℃
Size    L3720xW1450xH2010mm(protection quantity lifting height about 2850mm)
Weight
   About 1000kg
Optional
   Wire seal Station;  Wire Conduit Station;  Visual module of crimper;  Puller;  Magnifying glass;  Electronic micrometer;  Safety cover


Play Video

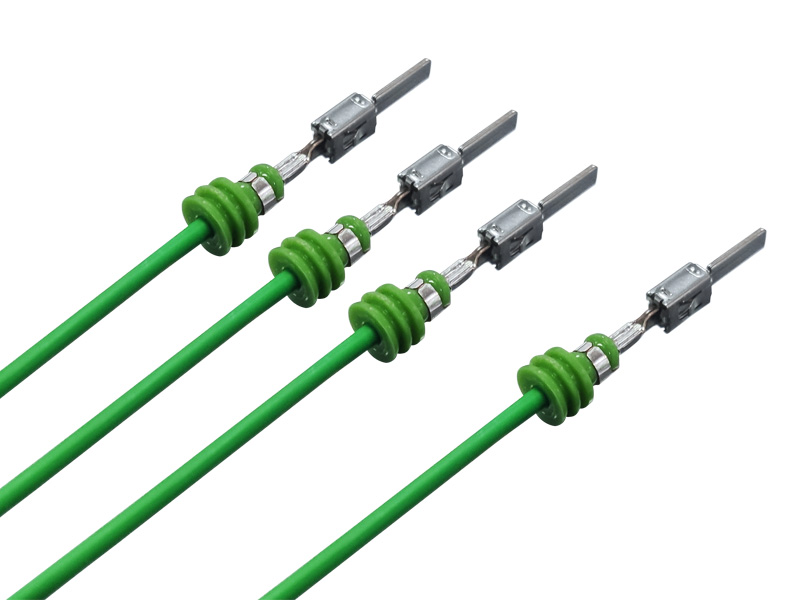

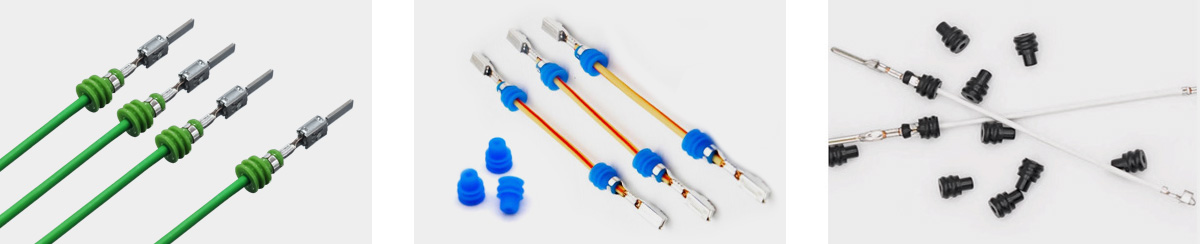

Single/double end waterproof plug threading crimping machineWire Harness Cases


waterproof plug threading crimping machine



High-Precision Wire Crimping Solutions:

Our fully automatic crimping machines deliver fast, reliable, and accurate processing of single- and multi-core cables.
From cutting to crimping and insulation, every step is automated for maximum efficiency and consistent quality.
Optional modules like crimp force monitoring, tinning, twisting, labeling, and heat shrink integration make it easy to customize your production line.
