JM-601B Automatic double-head crimping & Single plug shell
Auto Crimp Machines All in One >Warranty Period:24 Months
Degree of automation:Automatic
Certificate:CE/ISO:9001/ISO45001


日精智能 全自动双头打端 单头插壳机
Cutting/Stripping  Dual-end Crimping  Single Connector Insertion



Product Introduction:
JM-601B Automatic double-head crimping & Single plug shell machine, using precision servo drive rigid structure, PC man-machine interface digital control, production management is more convenient.    JM-601B can produce wire harness length from 45mm to 9999mm, lines color selection (customized), from # 18mm wire number #28.
Main functions:The wire is cut off at a fixed length, stripped at both ends, crimped at both ends, and single end insertion.   Support non-standard customization, but also can flexibly expand a number of additional functions: twist, solder, waterproof tube, heat shrinkable pipe, number pipe.
Product Feature:
1.   Features a fully closed-loop flexible wire feeding system with a rubber belt mechanism to protect the wire surface and enhance feeding accuracy.
2.   Incorporates a network-driven system to meet the rigorous industrial processing demands of photovoltaic wires.
3.   Utilizes imported servo motor drives to ensure high precision, efficiency, and operational stability.

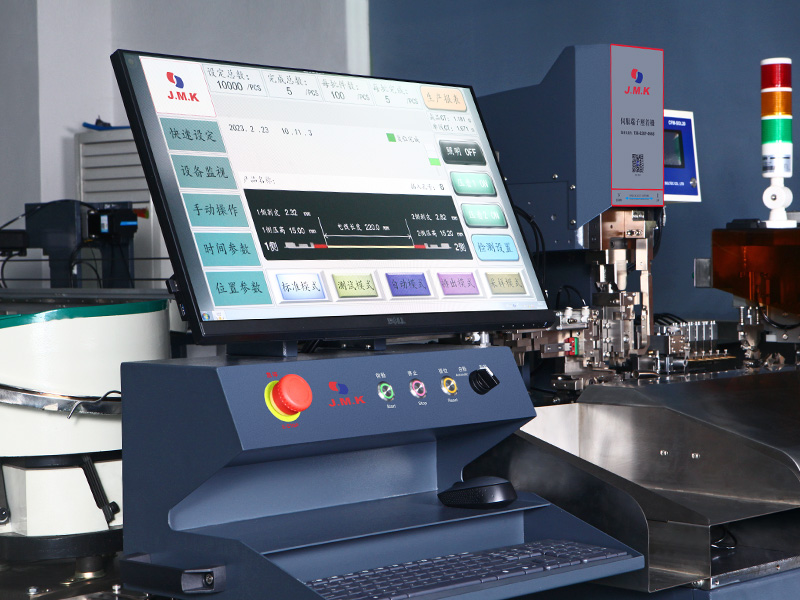

4.   Runs on an industrial-grade computer operating system, offering a user-friendly and intuitive interface.
5.   Supports both manual and automatic debugging modes, making equipment setup faster and more efficient.
6.   Equipped with a servo-driven crimping system that maintains a stable compression ratio, fully meeting cross-sectional analysis standards.


Technical Parameters:

Model JM-601A JM-601B
Power supply AC220V 50/60Hz 10A
Speed Approx. 2.0 sec/bar (at shortest tangent)
Gas source
0.5MPa, approx. 170N/min
Wire Color
1-8 (standard 6 colors)
Can cut off the length
45-9999mm (customizable)
Can cut off precision
± 0.5%xL
Stripping length
0-5.0mm(±0.1mm)
Machinable wire diameter
AWG#18-#28 (customizable)
Crimp ability
2T servo press x 1 set
2T servo press x 2 set
Size W1600xD1500xH1900mm
W1700xD1500xH1900mm
Weight About 450kg About 500kg
Optional
CCD visual inspection; pressure monitoring; waterproof plug base station

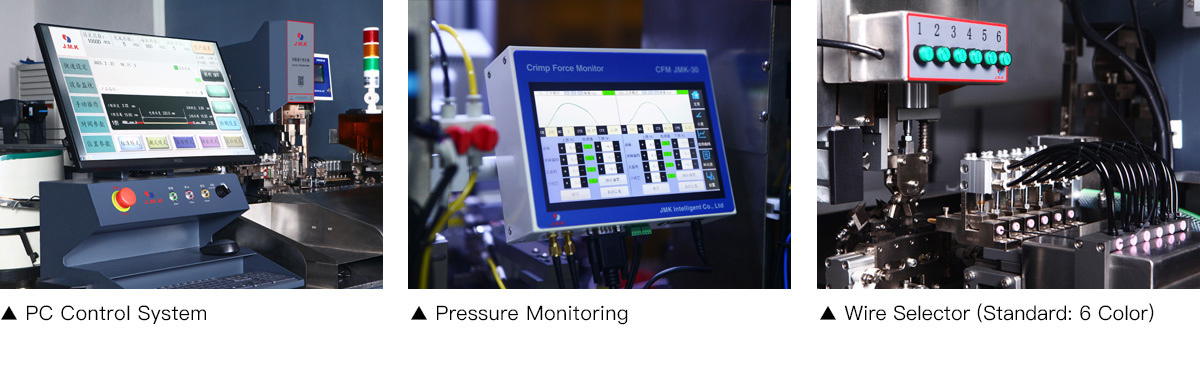

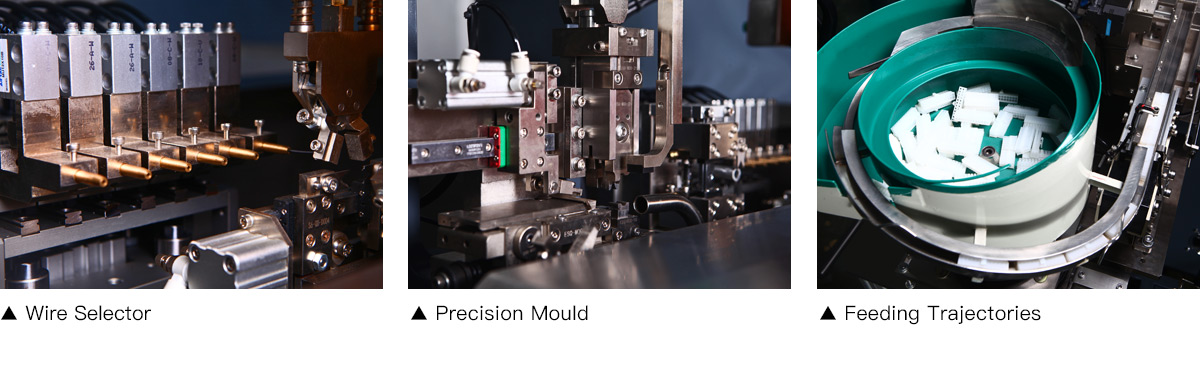

Product Details:

全自动端子机

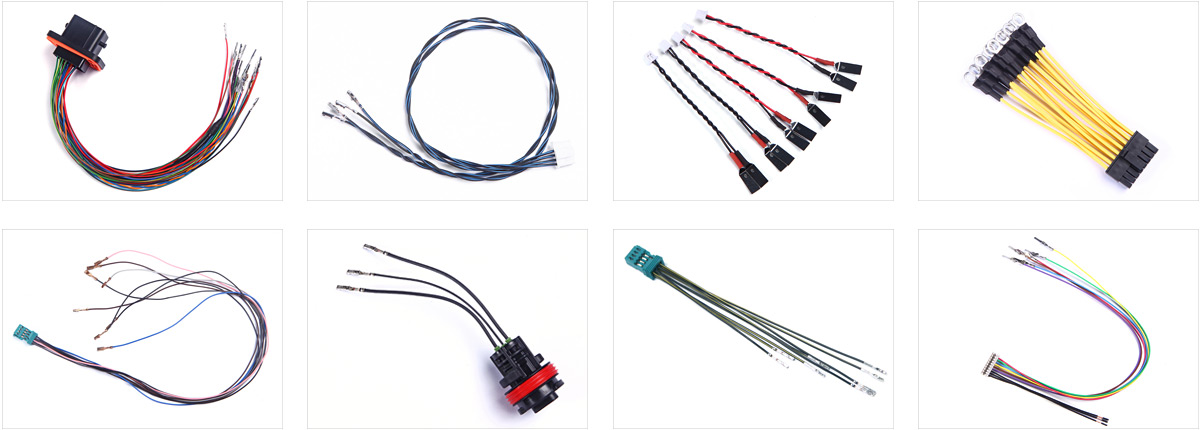

全自动插壳机Wire Harness Cases:

日精智能全自动端子机
