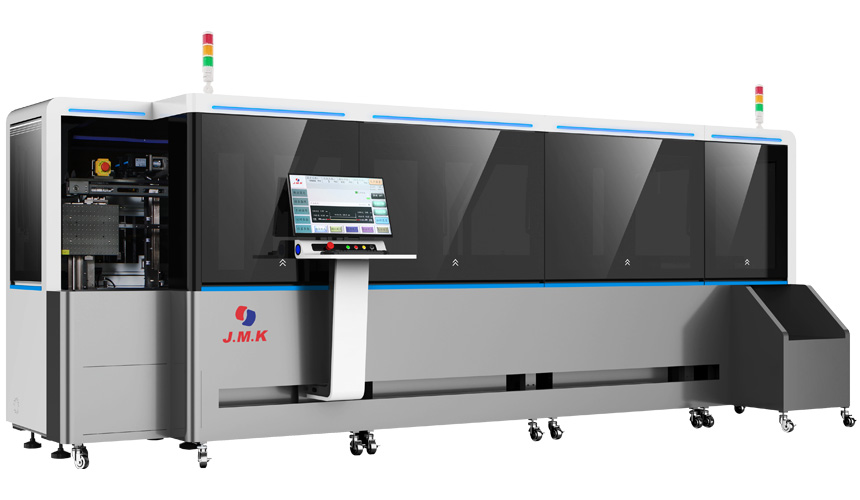

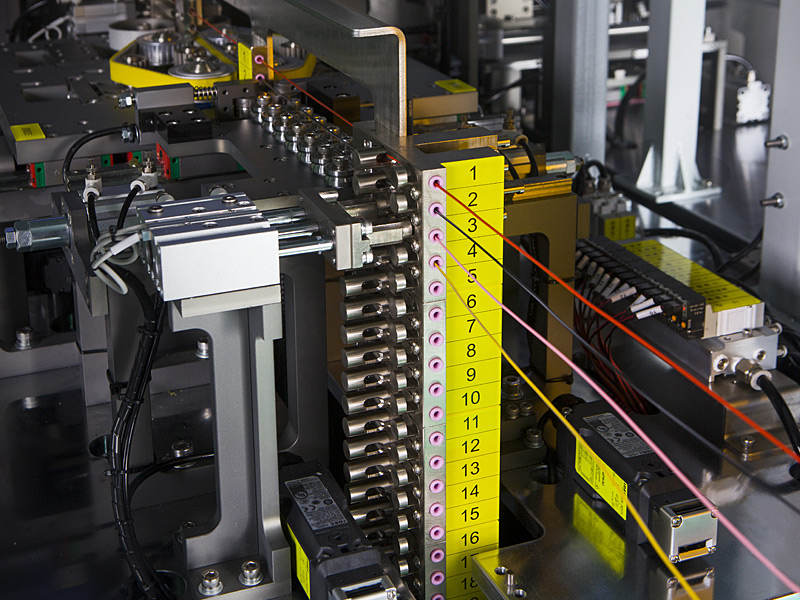

JM-800 Full-automatic Combo Multi-Terminals Wire Insertion Machine
Auto Crimp Machines All in One >Warranty Period:24 Months
Degree of automation:Automatic
Certificate:CE/ISO:9001/ISO45001

Combo multi-terminals wire Insertion Machine

Cutting/Stripping--12-Terminals Crimping--Waterproof Seals Inserting--Number Tube/Heat Shrink Tube--Multiple Connectors Inserts


Play Video

Product Features:
JM-800 is a combo multi terminals wire insertion machine, which independently developed by JMK for the automotive field.  It can crimp 12 different terminals and thread 6 waterproof plugs, support a variety of different plastic case insertion and 18-28# line number production.  It adopts a multi-station open platform, precision servo drive mechanism.  The JM-800 is certainly a fine machine with great precision and processing ability.
Product Description:
JM-800 3rd generation automotive wire harness automation processing equipment, Adopting high-precision visual positioning guidance insertion technology, Al self-learning, Assist in correcting the insertion angle and spacing of terminals, To meet the high-precision processing requirements of automotive wiring harnesses.  JM-800 supports 30 wire colors, multiple terminal crimping, waterproof seals threading, number tube, heat shrink tubing, supporting the insertion of multiple connectors and the production of AWG1826# wires. Can be connected to MES, Optional JMK intelligent crimping force monitor and CCD visual inspection system, for full process quality monitoring.  The highly flexible plastic insert tray can be embedded with multiple types of connector, and can produce a great scale of specific wires with greater flexibility.
1.  Touch screen control and parameters can be saved, it also can use the work sheet for production, fully digital and servo control;
2.  The machine uses PLC control, fiber communication, full servo system and stable working performance.
3.  It Mainly uses world famous components brands to ensure the machine stability.
4.  CCD visual monitoring system (optional) can be used to monitor the whole process of processing quality control, to ensure the premium quality of products;
5.  Can be embedded in many different types of plastic terminals.

Technical Parameters:

Model
JM-800
Power supply
AC380V/50Hz 10A
Speed About 3.0 seconds/stroke (single line)
Gas source
0.5MPa,170N/min
Wire Color
30 colors
Can cut off the length
240-9999mm
Can cut off precision
± 0.5%xL
Peeling length
0-15mm(±0.1mm)
Machinable wire diameter
AWG#18-#26
Send speed
8-12m/s(Max)
Crimp ability
2T-3T servo crimping machine (2-12 units optional)
Crimp travel
30-40mm (Optional)
Ambient temperature
5~50°C
Ambient humidity
30%-80%RH
Size W2000xH1900mmxL (length varies depending on the product)
Weight
About 2000kg (weight varies depending on the product)
Optional
CCD Detection;Wire seal Station

Product Details:

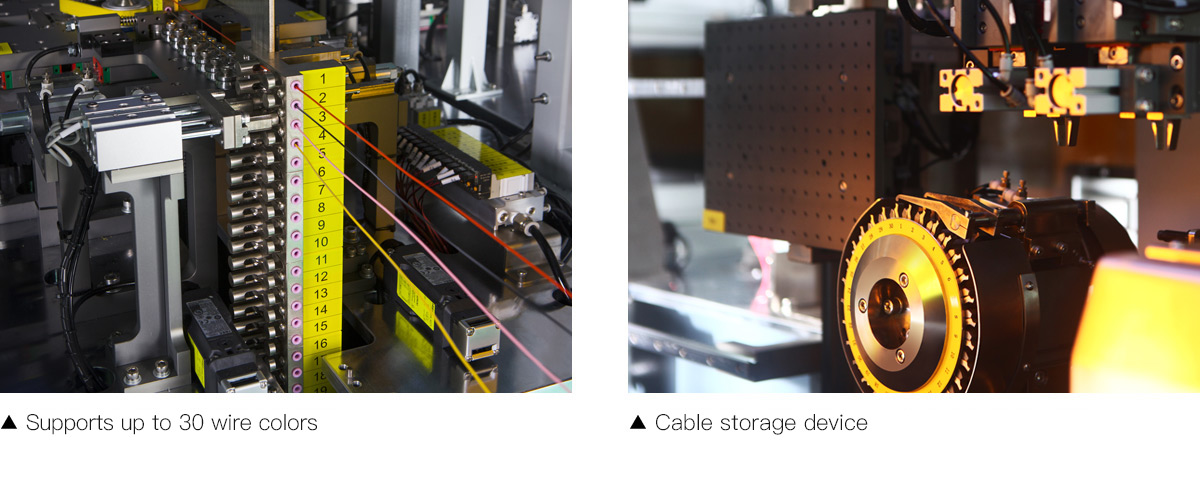

Combo multi-terminals wire Insertion Machine

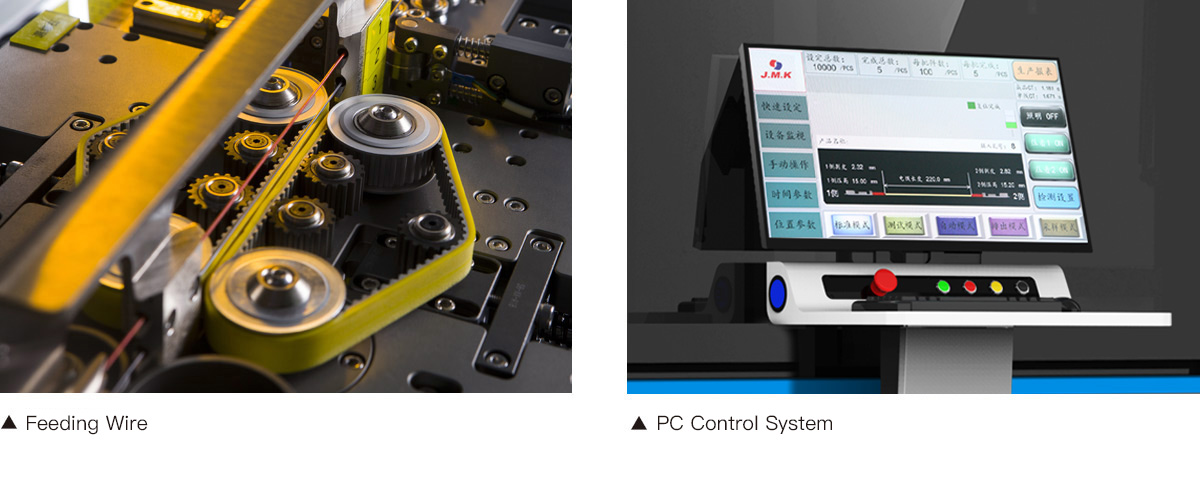

Combo multi-terminals wire Insertion Machine

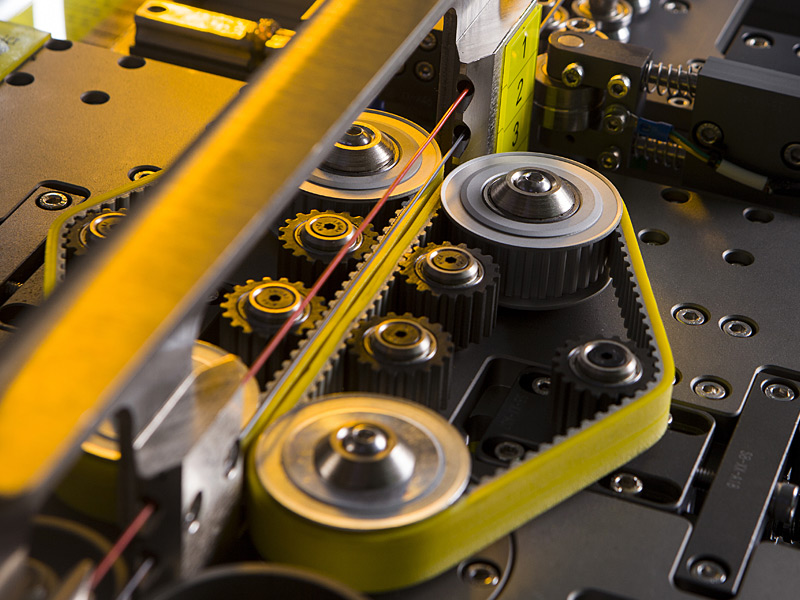

Combo multi-terminals wire Insertion Machine

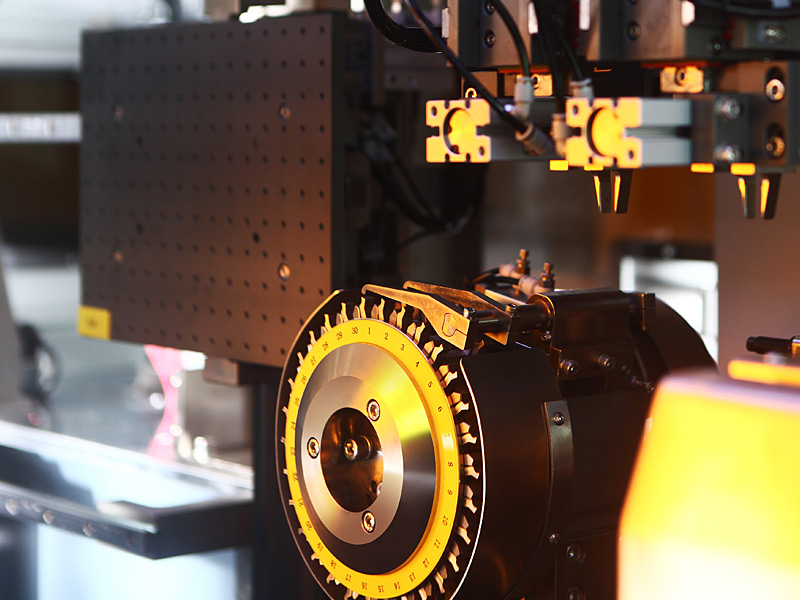

CASES: Combo multi-terminals wire Insertion Machine


Automatic crimping presses with integrated insulation modules are engineered for high-precision crimping of various terminals.
They support both single- and double-sided crimping for single-core and multi-core cables—including round, flat, and ribbon types.
These presses are known for their outstanding precision, reliability, and efficiency.
A wide range of optional modules is available to enhance functionality, including Crimp Force Monitoring (CFM), tinning, twisting, labeling, heat shrink tubing application, and automated feeding systems.
