Multi-Core Sheathed Cables/Stripping /Termination /Shelling
Product Introduction:

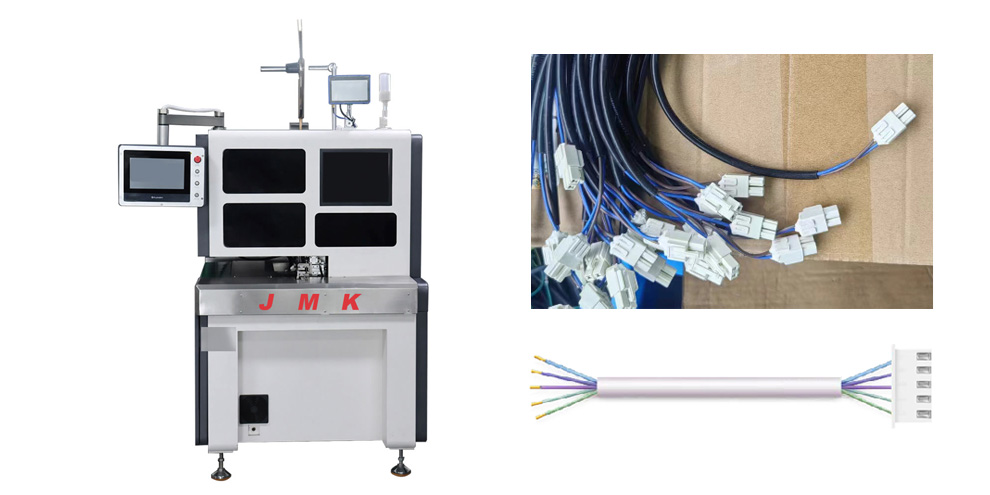

A cost-effective automatic machine for crimping terminals and inserting connectors on sheathed multi-core wires. Supports splitting, stripping, crimping, and connector insertion with ±0.1mm cutting accuracy.
Optional features include pressure monitoring, CCD inspection, and auto rejection of defects. Modular design allows fast changeovers and supports various wire types with one machine.
A cost-effective automatic machine for crimping terminals and inserting connectors on sheathed multi-core wires. Supports splitting, stripping, crimping, and connector insertion with ±0.1mm cutting accuracy.
Optional features include pressure monitoring, CCD inspection, and auto rejection of defects. Modular design allows fast changeovers and supports various wire types with one machine.
Technical Parameters：
|
Name |

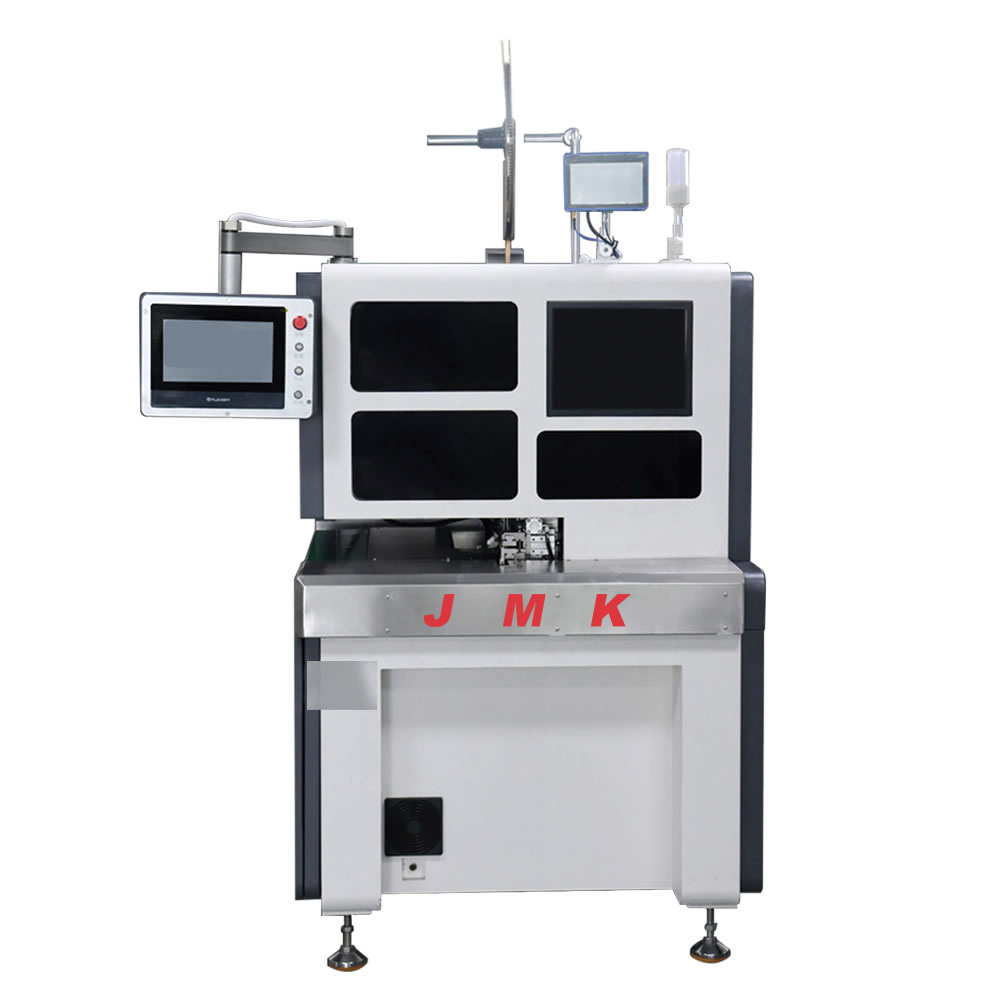

Multi-core Sheathed Wire Termination and Insertion Machine |
|
Model |
JM-208 |
|
Main Functions |
Stripping, termination, insertion of rubber casing (separable wire function) |
|
Control Mode |
Adopting single-chip control system and servo motor to ensure the equipment high precision and high efficiency and high stability |
|
Detection Device |
Pneumatic pressure, wire presence, terminal presence, and connector insertion position detection. |
|
Power Supply |
Single-phase 220V 50/60HZ |
|
Air Pressure |
0.5-0.7Mpa |
|
Processable Terminal Pitch |
1.0-3.96mm |
|
Processable Wire Range |
AWG#32-AWG#18 |
|
Production Capability |
Approximately 400-550 (negotiable by line) |
|
Stripping Length |
A-side 1-7mm |
|
Cutting Accuracy |
±（ 0.2%*L+1） mm |
|
Machine Size |
L1221*W1000*H1700 (without bump) |
|
Weight |
About 360KG |

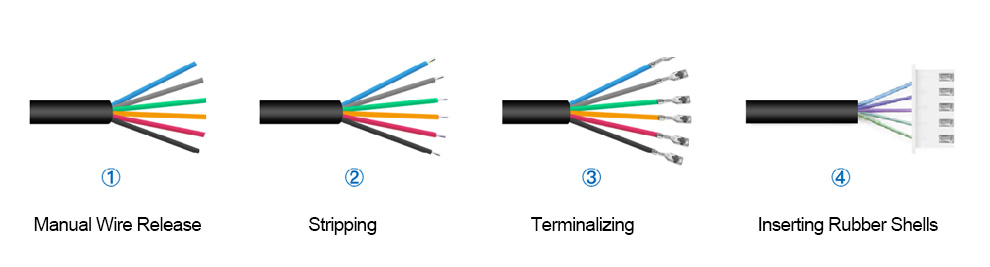

Technological process:
