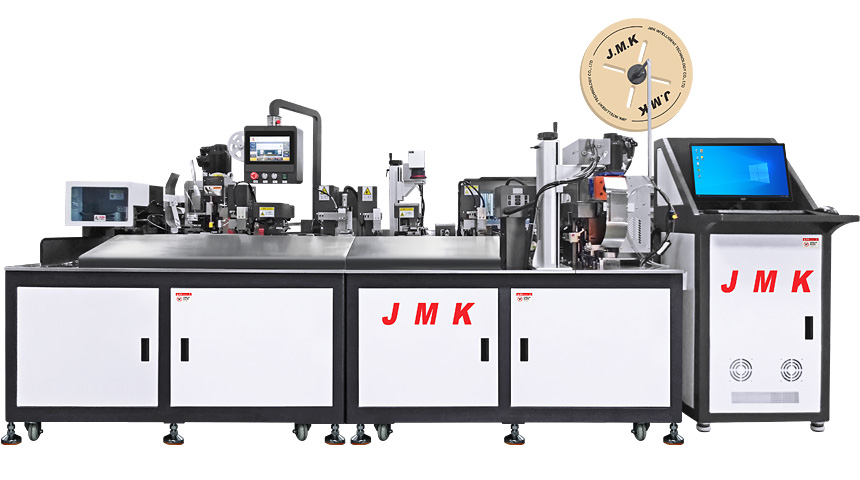

JM-201 Automatic Double Code Tube Insertion Terminal Crimping Machine
Main Function：

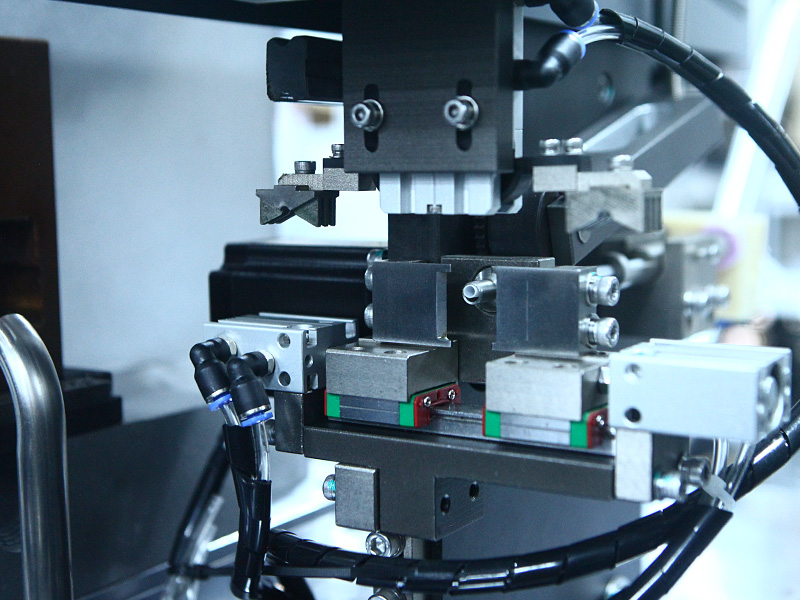

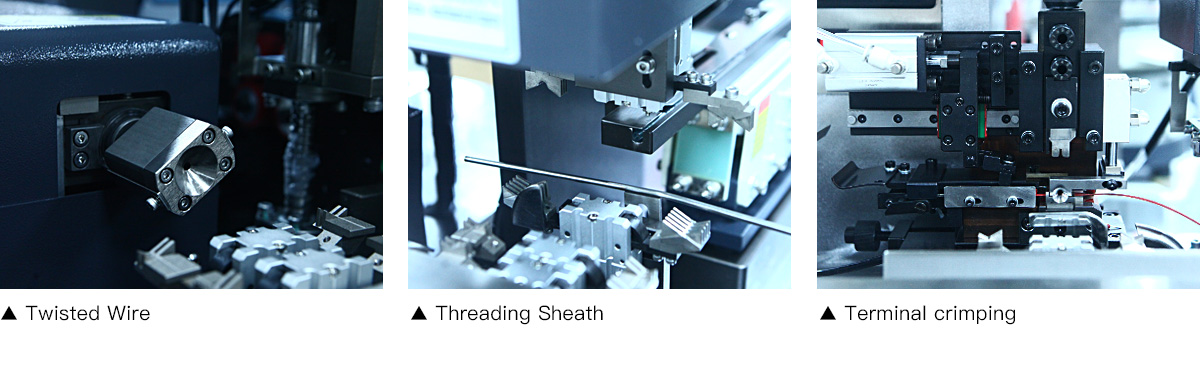

Wire fixed length cutting, single / double-end stripping, code tube insertion, heat tube insertion, twisting wire, double-end crimping.

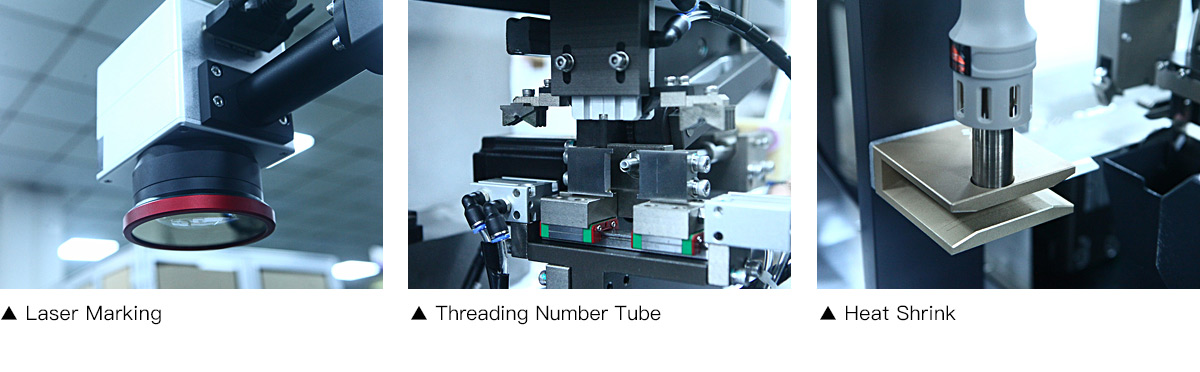

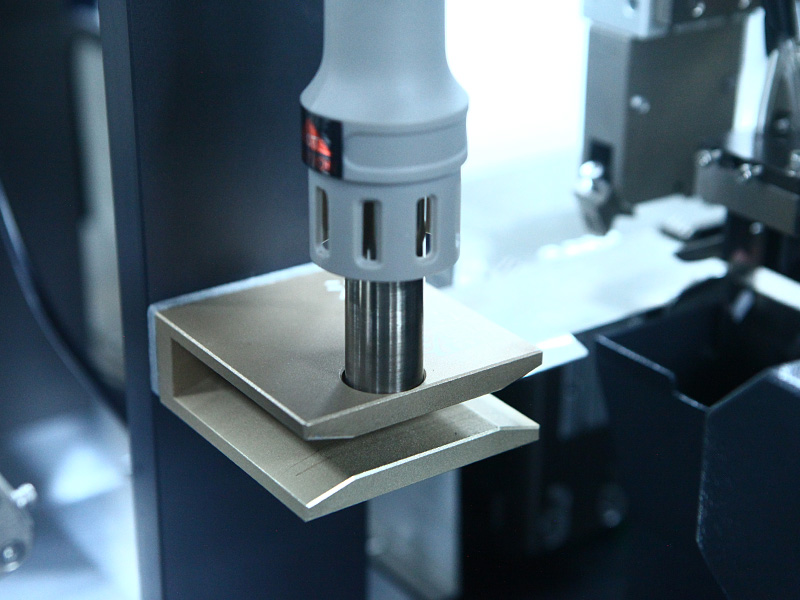

Single/Double End Laser Printing| Tube Shrinking | Crimping | Insulation Insertion
Video Display
设备细节：
Technical Parameter：
| Model Name | JM-201 Automatic Double Code Tube Insertion Terminal Crimping Machine |
| Function | Wire fixed length cutting, single / double-end stripping, code tube insertion, heat tube insertion, twisting wire, double-end crimping. |
| Wire Size | 0.3-6mm²， AWG26#-AWG10# （Customization） |
| Cutting Length | 100mm-3000mm( setting on 0.1mm) |
| Stripping Length | 1-15mm |
| Insertion Spec | 12-30mm，2.0-8.0(Diameter) |

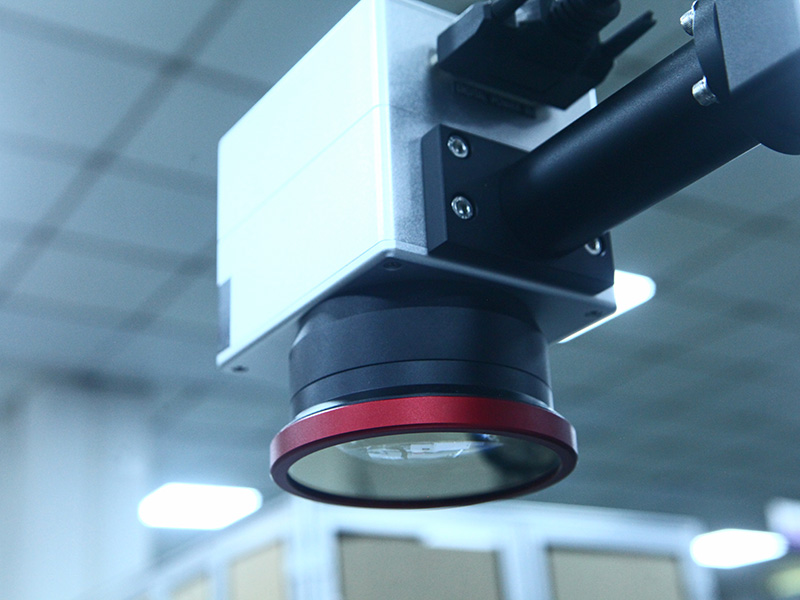

| Printing Type | Laser |
| Crimping Force | 2.0T-3.0T |
| Crimping Stroke | 30mm |
| Applicator | OTP applicator |
| Detection | Air pressure detection, no wire / no terminal detection, crimp force detection, CCD visual inspection |
| Control Method | Single Central Control |
| Speed | about 1800-2300 cable/hour（up to the wire size） |
| Compressed Air | Not less than 5MPa（170N/min） |
| Power supply | single phase AC220V 50/60Hz 16A |
| Overall Size | Length 2300 × Width 850 × Height 1800mm |

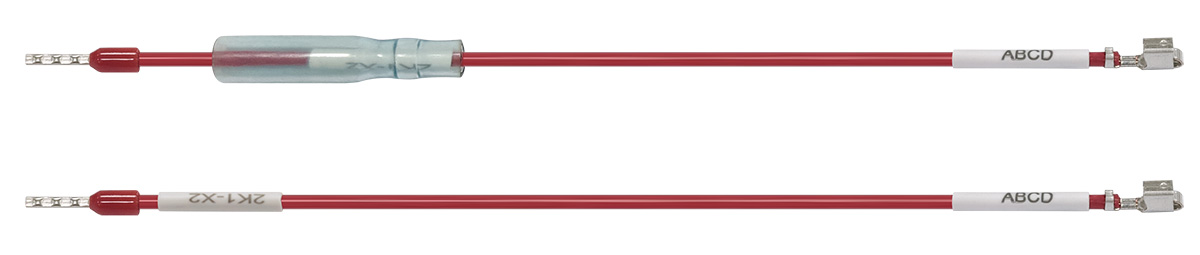

Sample：
