JMK-550 Automatic Single End Shrinkable Piping and Double End Crimping Machine

Product Introduction:

JM-550 Automatic Double-end Crimping｜Single-end Threading Heat Shrinkable Tube Machine, adopting PLC numerical control system, supporting wire fixed-length cutting, stripping, double-end crimping, single-end crimping, single-end threading heat-shrinkable tubing automatic positioning and baking, can be equipped with pressure monitoring and CCD visual image detection system, intelligent temperature control, the whole process of quality control, defective products are automatically sorted out, intelligent and efficient, time-saving, effort-saving and labor-saving!

Technical Parameter：

Model	JM-550
Power	AC220V/50/60Hz
Function	Wire cutting, stripping, double-end pressing, single-end pressing, single-end sleeving heat-shrink tubing automatic positioning and baking
Capacity	1800-2500 pieces/hour (depending on the wire)
Processing Scope	AWG24#-AWG6#(0.3-12mm²)
Cutting Length	60-9999mm
Cutting Accuracy	±0.5%*L
Tubing Length	15-35mm
Pressing Capability	2T Terminal Machines*2 (Customizable)
Size	L1700*W850*H1800mm

Product Video
——

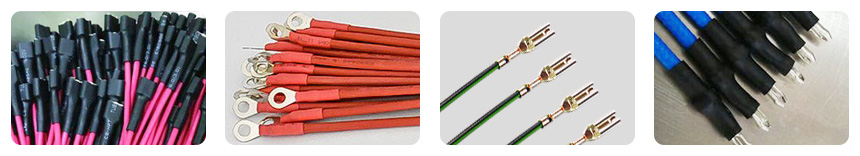

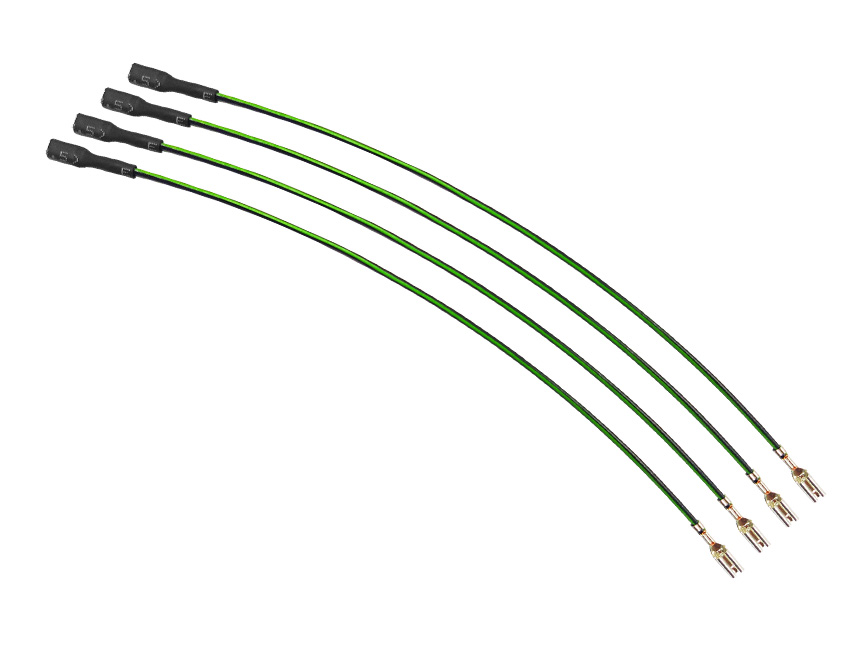

Sample Wiring Harness
——

Wire cutting, stripping, double-end crimping, single-end crimping, and single-end sleeving of heat shrink tubing are automatically positioned and baked.
