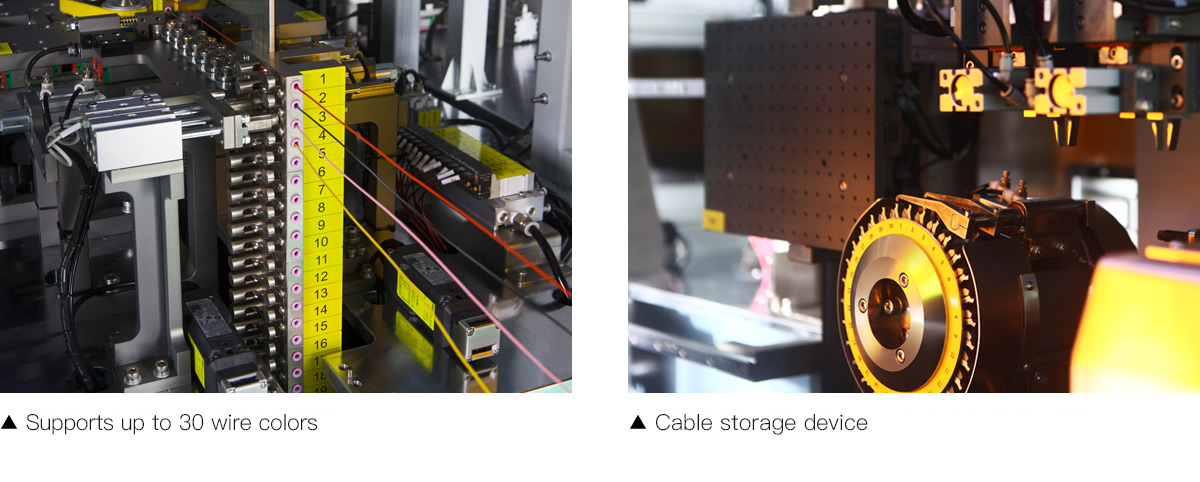

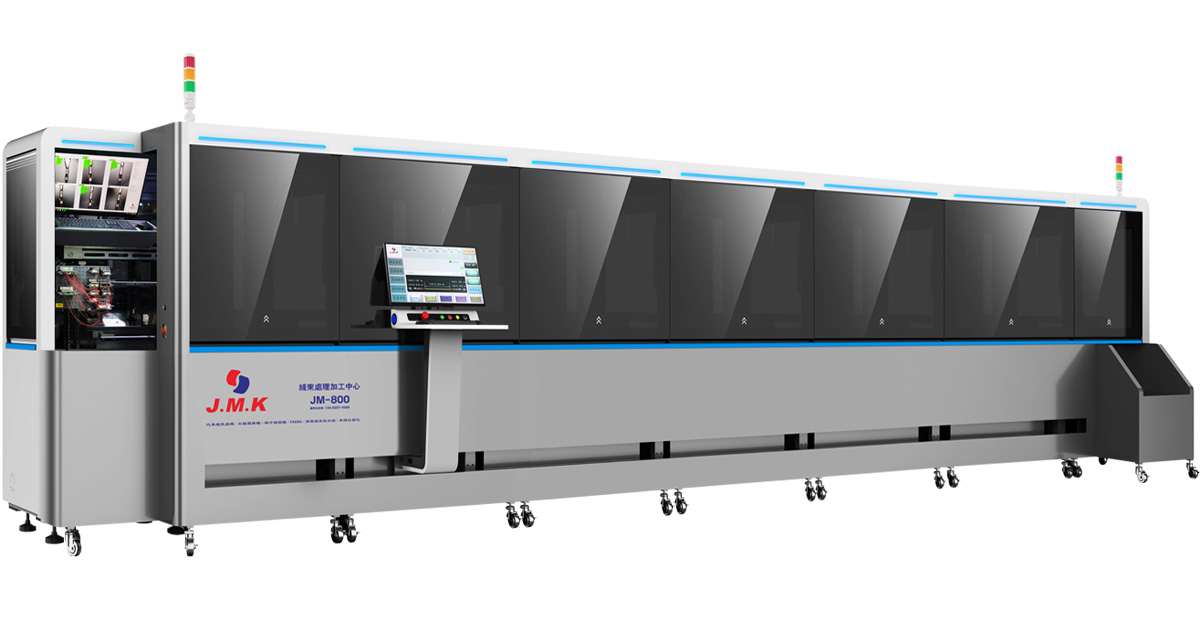

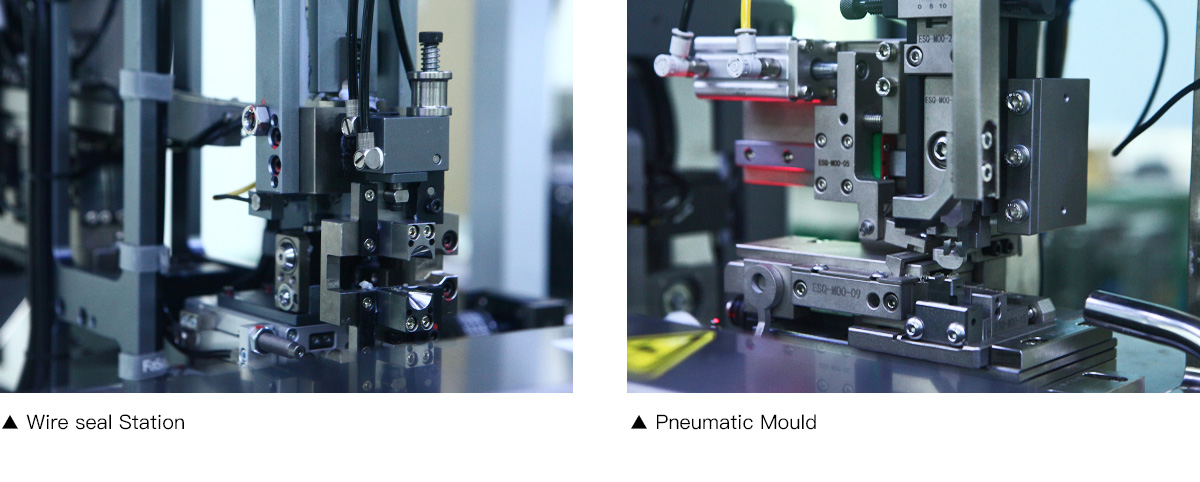

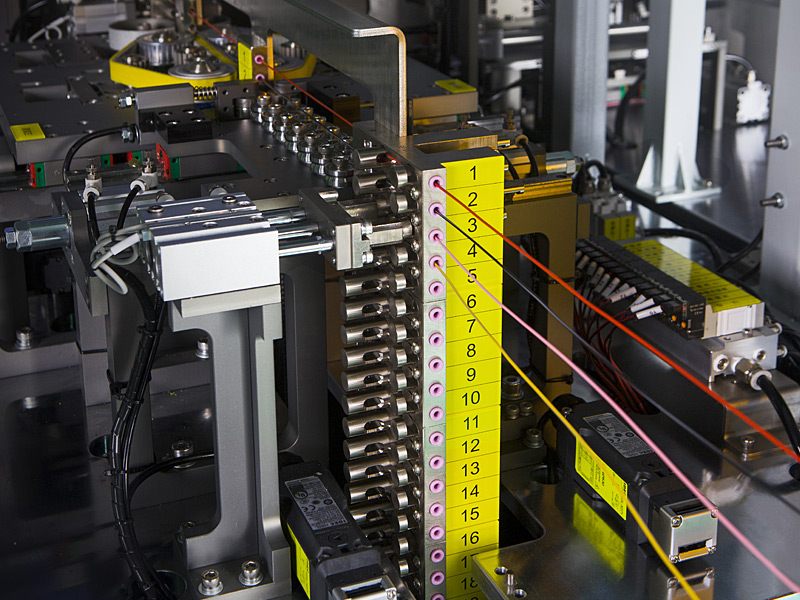

Automobile Door Harness Automation Production Line JM-800, it is a combined wire harness multi-terminal connector insertion machine independently developed by JMK - Technology for the automotive field, supporting 30 line colors, equipped with 4 waterproof seal stations,8 crimping station, connector insertion, CFM pressure monitoring and CCD camera check, whole process quality control. Highly flexible plastic connector pallets can be embedded in many different types of plastic connectors to produce a large number of different types of specific wire harnesses with greater flexibility. Support non-standard customization, but also can flexibly expand a number of additional functions, with high flexibility, configuration of workstations, short product switching time, high machining precision and so on.

Machine Features：

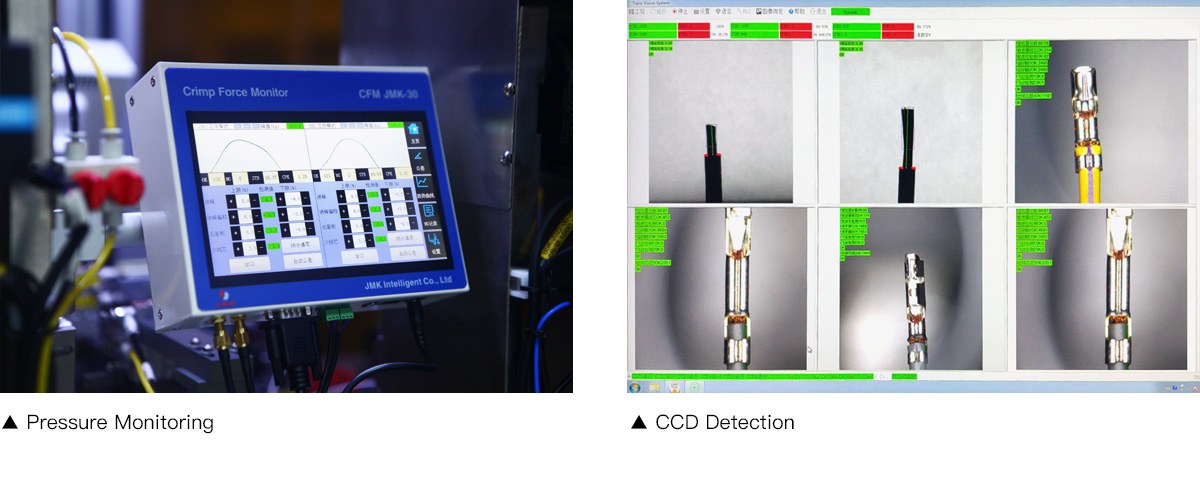

Cable cutting, stripping at both ends, terminal crimping, wearing waterproof seals, a variety of plastic connectors are inserted, artificial connectors, U-shaped cables picking, good products / defective products are discharged and discharged automatically. Detection for lower pressure and no cable, cable overload detection, pressure error detection, terminal detection, terminal overload detection, terminal insertion detection, wire conduction, CFM pressure monitoring (optional), CDD visual inspection (optional).

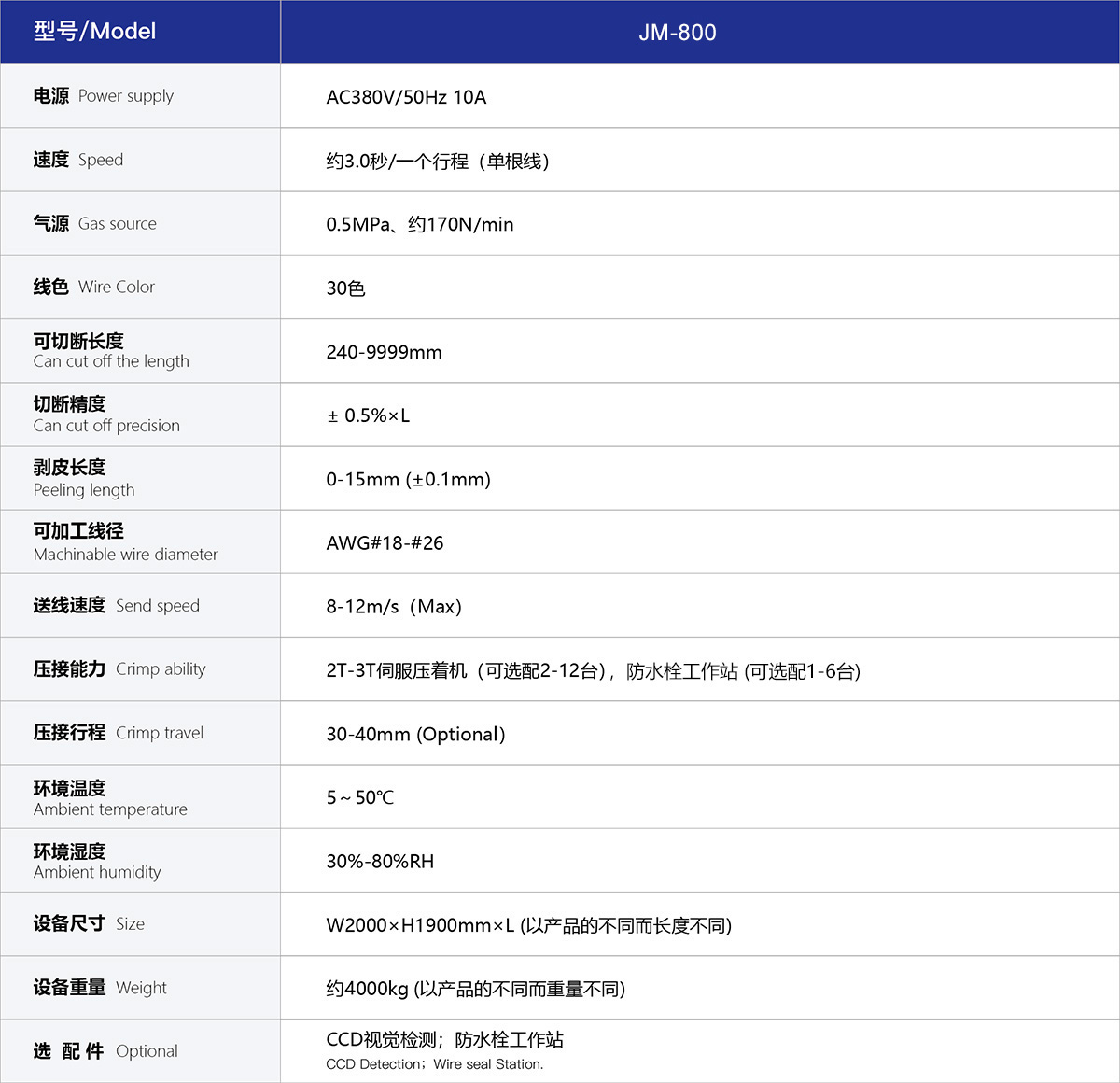

Specification：

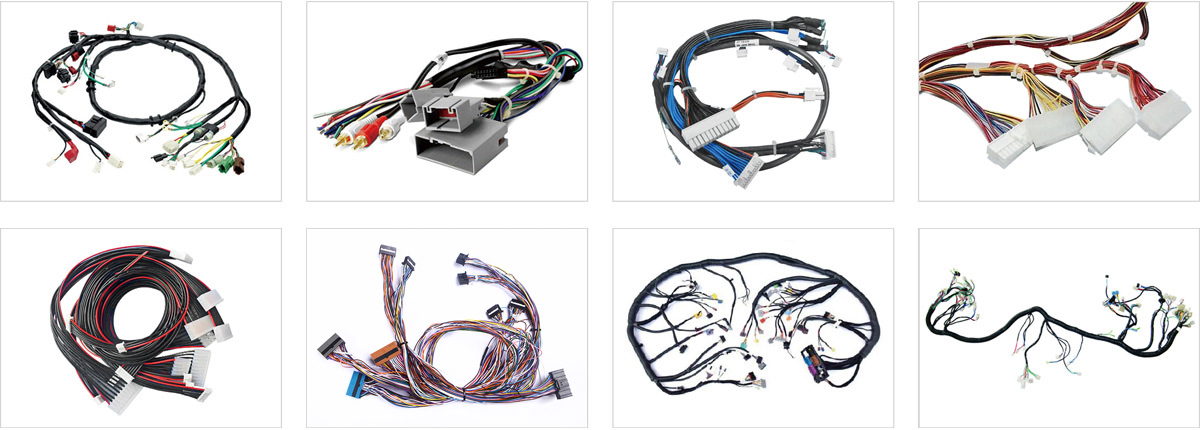

CASES：
