JMK intelligent JM-601B+ automatic double-end crimping and single-end waterproof seal inserting machine adopts precision servo-driven numerical control system with high precision and stable and reliable equipment performance.

JM-601B can produce 45-9999mm (customizable), 1-8 kinds of line color selection (standard 6 colors), AWG# 18mm 28 wire number production.

JMK intelligent JM-601B+ automatic double-end crimping single-end insert housing machine

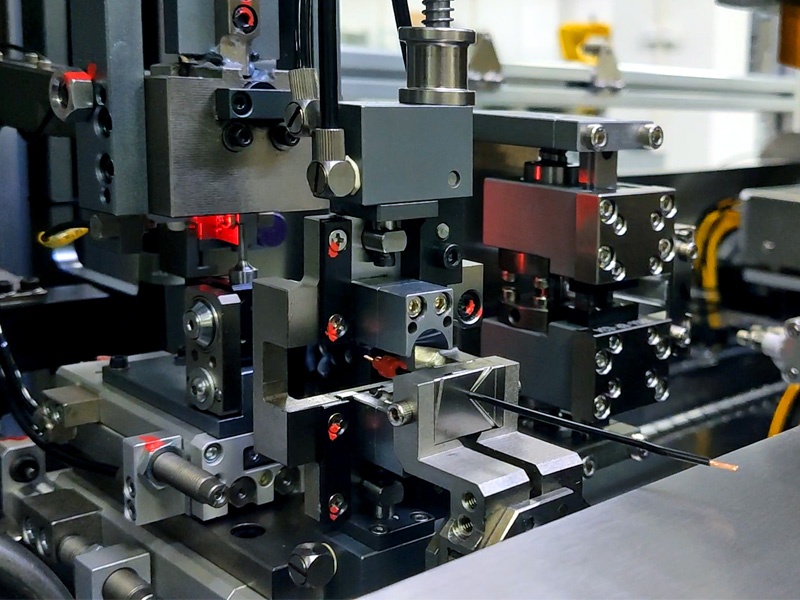

Main functions: wire cutting and peeling, double-ended, single-end waterproof bolt, single-end connector insertion.
Support customization, flexibly additional functions: wire twisting, heat tube insertion, code tube insertion and so on

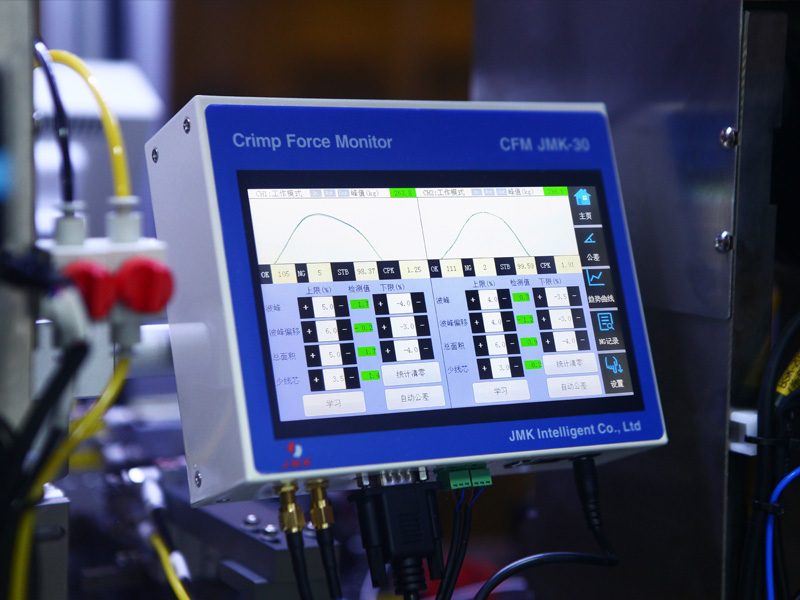

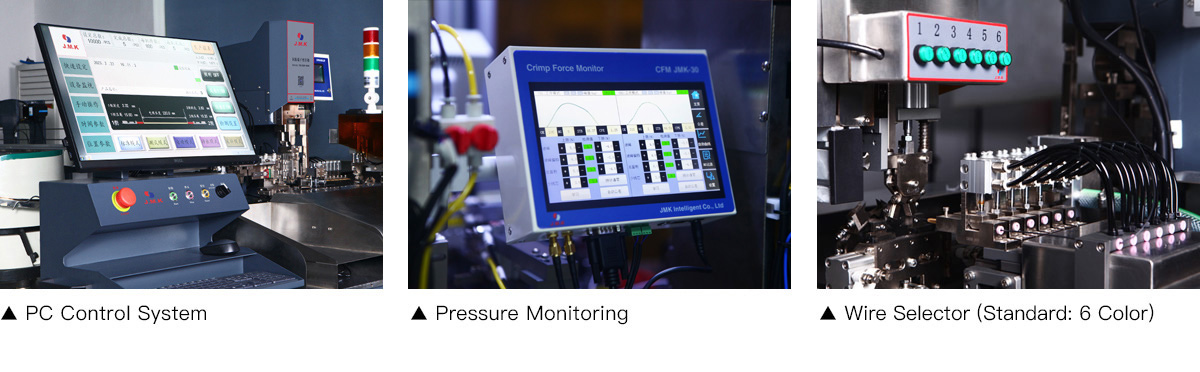

JM-601B+ can be equipped with crimp pressure monitoring and CCD visual inspection system, which can display product image and crimping force curve in real time, make comparative analysis, sound alarm and automatically sort out defective products when crimping is bad. The quality control of the whole processing process greatly saves the labor cost, ensures the product quality and improves the production efficiency.

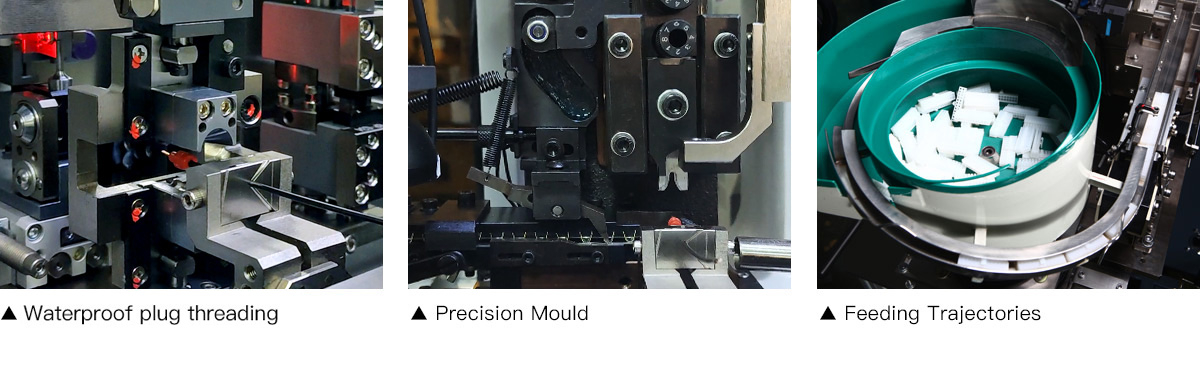

Equipment Details

Specification

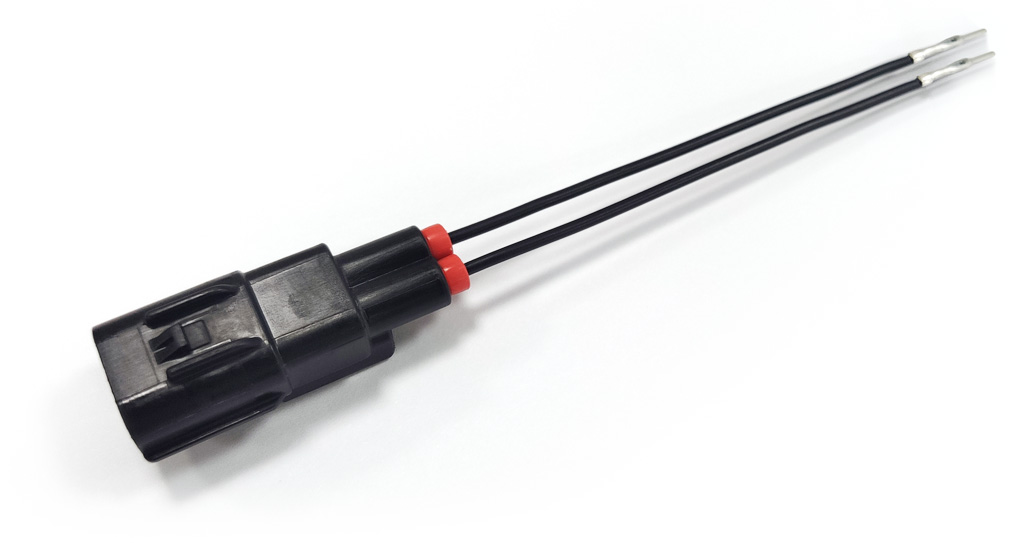

Harness samples：Double ends crimping, single end seal insertion, connector insert housing
