Product Introduction:

1.Designed for ribbon cable processing, including cutting, splitting, and stripping;

2.Easy-to-use with computerized control and button operation;

3.High-speed stripping with adjustable wire head, tail, and total length;

4.Independent speed settings for feeding, cutting, and stripping for optimal results;

5.Supports quantity setting, bundling, delay timing, and middle stripping;

6.High-precision motor drive with long service life;

7.Stores up to 100 wire processing presets;

7.Two slitting modes: punching and sliding cut.

Technical Parameters:

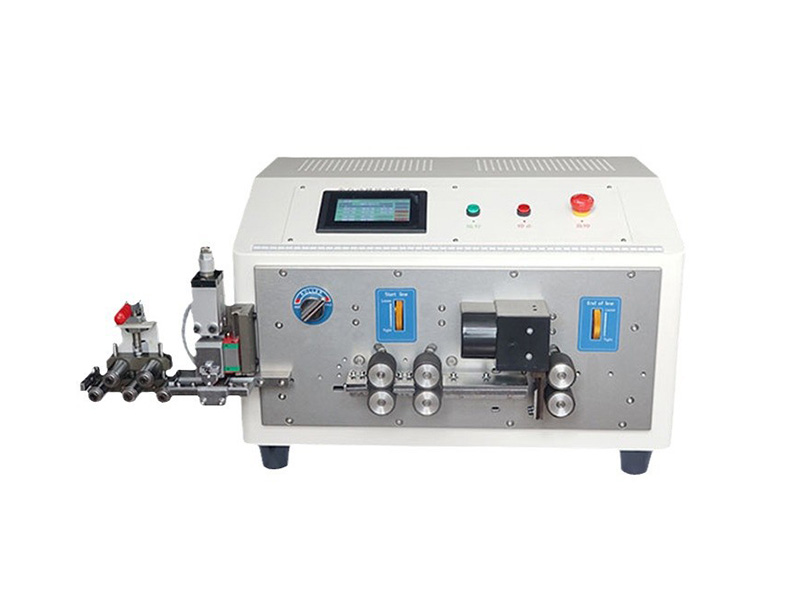

Name	Computerized slitting, cutting and stripping machine for ribbon cable
Wire range	AWG26#: 1-15pin; AWG24#: 1-12pin (Specially Customizable)
Cutting length	30-99999mm
Slitting length	1-200mm
Stripping length	wire head 0.5-30mm/wire end 0.5-30mm
Cutting precision	±(0.2%*L+1) mm
Capacity	1000-3000 pcs/h
Tool materials	Imported tungsten steel and high speed steel
Drive	4 wheels driven
Feeding speed	0.7m/s
Voltage	220V 50/60HZ
Motor	0.3KW
Air supply	0.3Мра-0.5Мрa

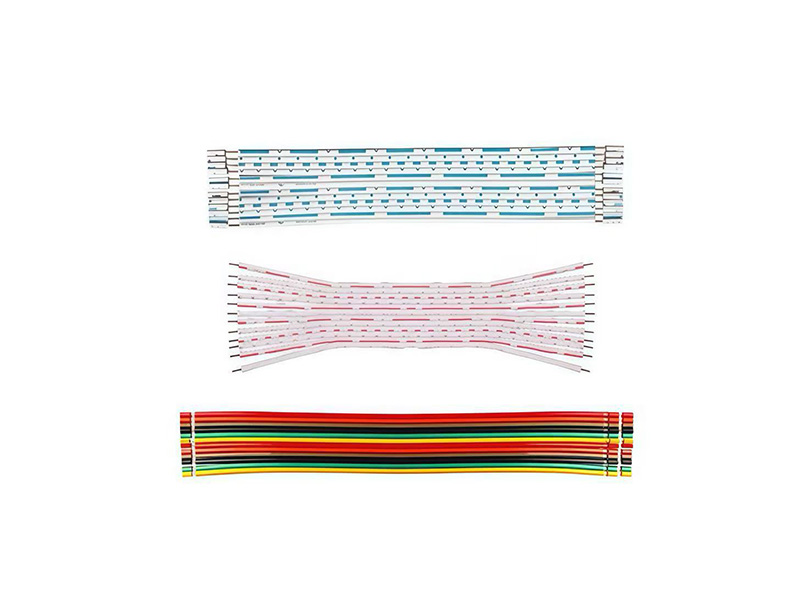

Wire Case:
