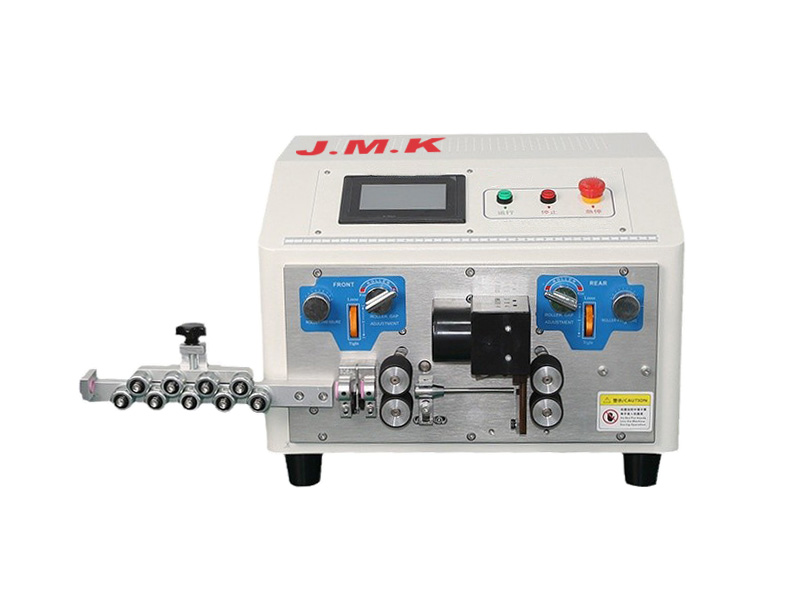

Automatic Wire Cutting and Stripping Machine
Auto Cut Strip >Warranty Period:24 Months
Degree of automation:Automatic
Certificate:CE/ISO:9001/ISO45001

Product Features:

1. can handle multiple wires at the same time, work more efficiently;
2. computer control, push-button operation, stable working performance, easy to operate;
3. High-speed wire stripping, wire head, tail and total length can be set arbitrarily within the wire cutting range;
4. wire feeding, cutting and stripping speed can be set separately to achieve the best stripping effect:
5. with total amount, number of bundles, delay time, intermediate stripping and other setting functions;
6. The motor drive adopts subdividing method, high precision and long life;

7. The system can store 100 kinds of different wire data.

Technical Parameters:

Name Automatic Wire Cutting and Stripping Machine
Blade material
Imported tungsten steel/high speed steel
Wire range
0.1-2.5mm²*2wires
Cutting length
10-99999mm
Slitting length
0.5-30mm(Other size can be special ordered)
Stripping length
0.5-30mm(Other size can be special ordered)
Cutting precision
±(0.2%*L+1)mm
Capacity
6000-15000 pcs/h
Tool materials
Other size can be special ordered
Drive
4 wheels driven
Feeding speed
2m/s
Voltage
220V 50/60HZ
Weight 45kg
