Automobile wire harness processing equipment center JM-800 is a combined wire harness insertion housing machine independently developed by Shenzhen JMK. It can support 30 cables color, 4 seal stations, 8 crimping station, connector insert housing, equipped with JMK CFM pressure monitoring and CCD visual inspection system, the whole process quality monitoring. Highly flexible plastic plug pallets can be embedded in many different types of plastic shells to produce a large number of different types of specific wire harnesses with greater flexibility. Also can flexibly expand a number of additional functions, with high flexibility, flexible configuration of workstations, short product switching time, high machining precision and so on.

Automobile Wire Harness Processing Equipment JM-800

Main features of automobile wire harness processing equipment center JM-800.

Cable cutting, stripping at both ends, terminal crimping at both ends, wearing waterproof seals, a variety of plastic connector are inserted, artificial shells, U-shaped wires, good products / defective products are discharged and discharged automatically. Low pressure, wire detection, wire overload detection, pressure error detection, terminal detection, terminal overload detection, terminal insertion detection, wire conduction, pressure monitoring (optional), CCD visual inspection (optional)

Samples wire harness made by automobile wire harness processing equipment.

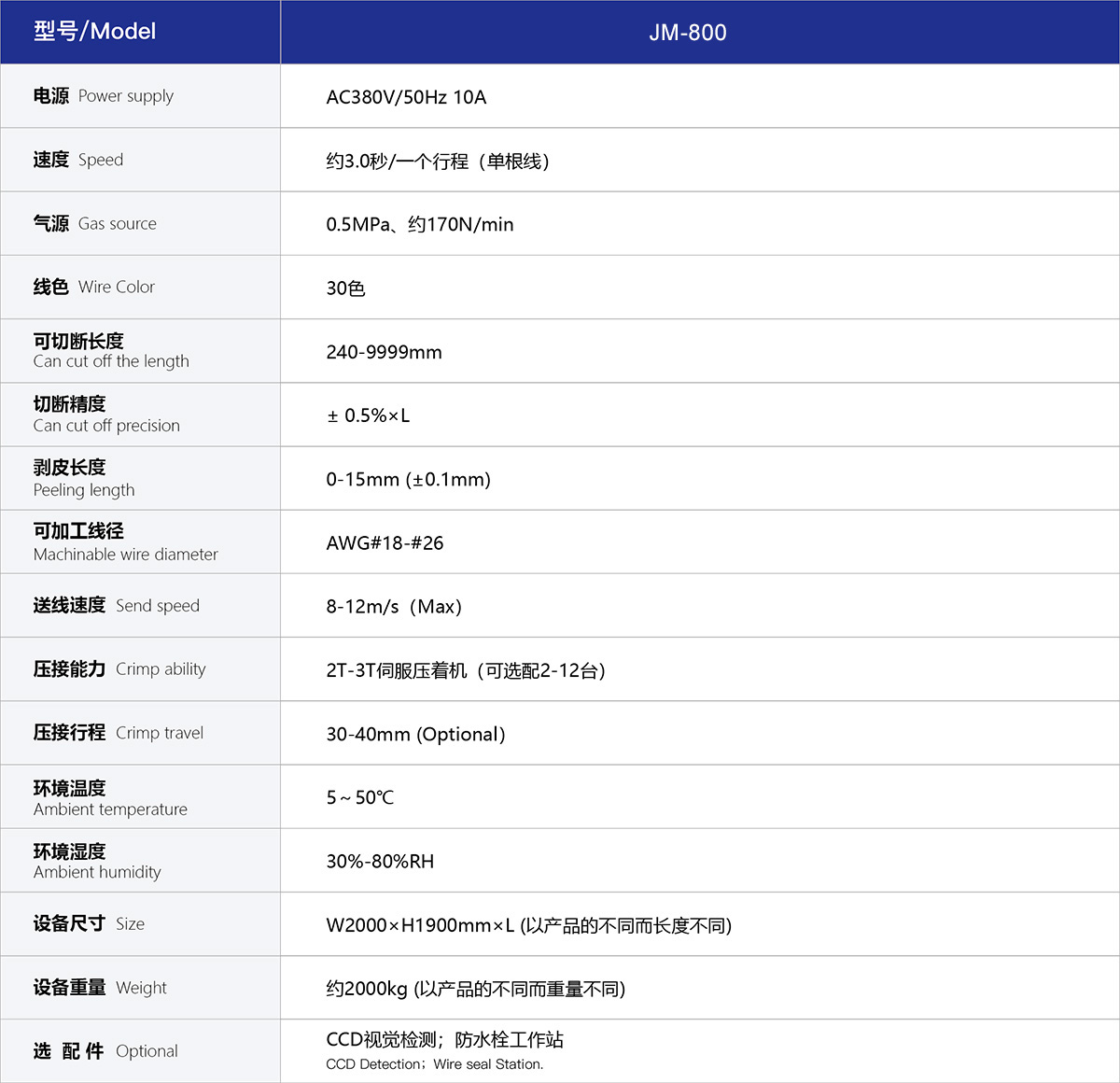

Specification parameters
