Product Introduction:

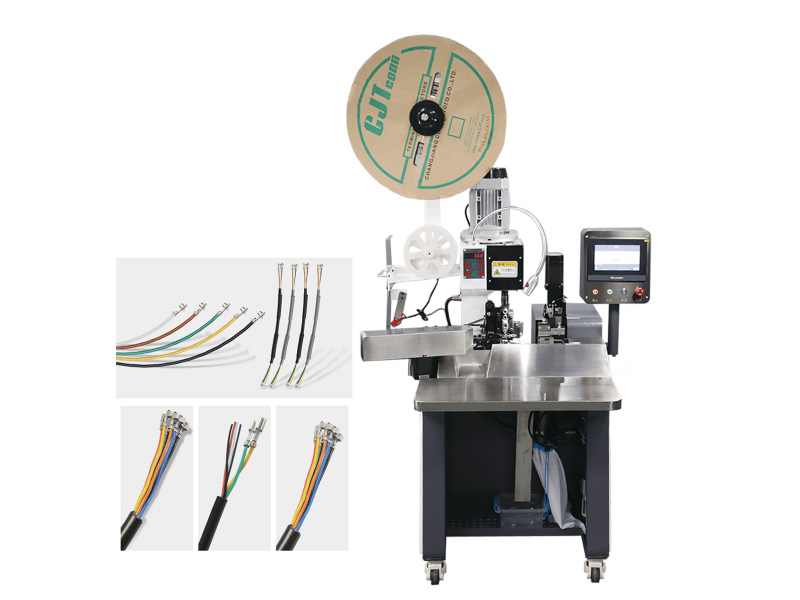

This product uses high-efficiency inverter technology to simplify continuous stripping and crimping of jacketed cables. It handles various wire types such as USB cables, core wires, sheathed cables, flat cables, power cords, and headphone wires. Stripping and crimping are completed in one step, reducing processing time, lowering labor difficulty, and improving efficiency.
Product Feature:
1.Sheathed wires are cut, stripped, and crimped continuously.
2.Servo and screw drive ensure high precision and product quality.
3.High-precision, durable molds are easy to replace.
4.Supports automatic processing of multiple wires—cutting, stripping, crimping, and pickup.
5.Touchscreen control allows adjustment of stripping length, cutting depth, and wrapping position; multiple settings can be saved, with an intuitive and user-friendly interface.
Technical Parameters:
|
Model |
Continuous stripping machine for sheathed wires |
|
Power Supply |
Single-phase 200V to 240V, 50/60Hz |
|
Air Source |
0.4 to 0.6 MPa (Please use dry and clean air) |
|
Crimping capacity |
2T/3T |
|
Crimping terminal |
Open type continuous terminal horizontal/vertical style |
|
Applicable wire Diameter |
Core wire minimum:ø0.8mm Core wire maximum:ø4.0mm |
|
Maximum number of core processing |
20 cores (cere wire) |
|
Stripping range |
For 2-4 cores, the minimum outer sheath stripping is 15mm; for 5-10 cores, the minimum outer sheath stripping is 25mm |
|
Stripping length |
1.0~10.0mm |
|
Tangent error |
0.05~0.1mm |
|
Position error |
0.05~0.1mm |
|
Travel |
30mm |
|
External dimensions |
L850*W550*H1350 mm |
|
Weight |
150kg |
|
Processing capacity |
5500 PCS 12-core (cere wire)/H |
|
Adaptive line species |
AV, AVS, AVSS, CAVUS, KV, KIV, UL, IV Teoxyron, fiber line, etc |
