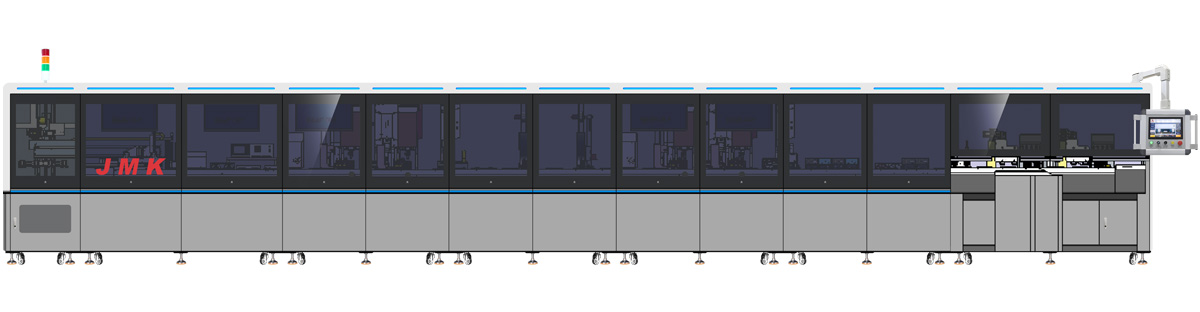

JM-900 Fakra / Ethernet Automatic Production line

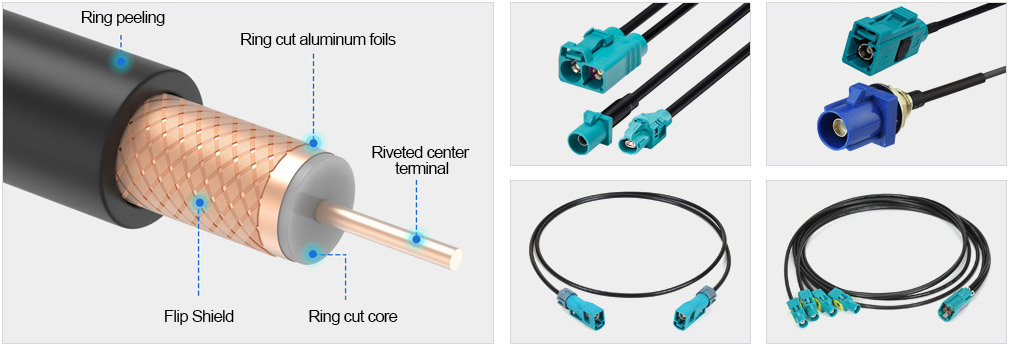

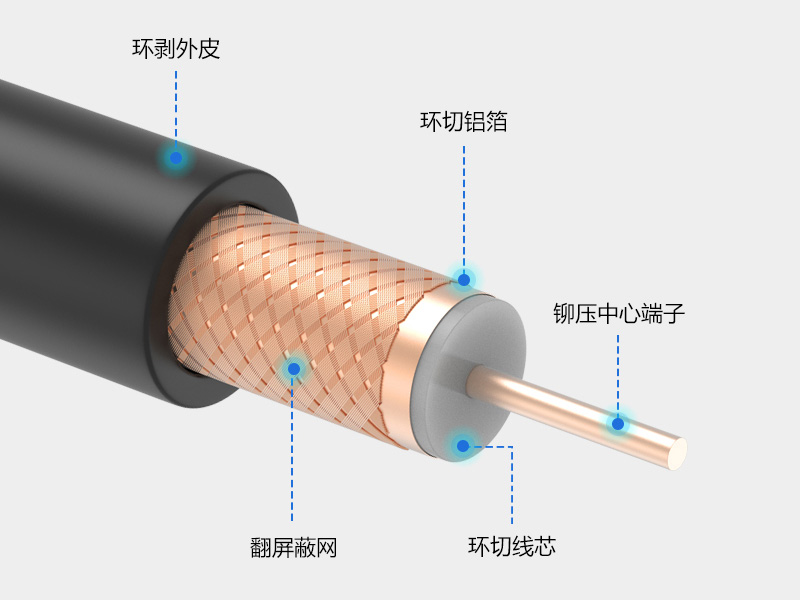

1.JMK Fakra / Ethernet Wire Harness Automatic Production Line is an intelligent coaxial connection line processing equipment mainly used for vehicle communication series.

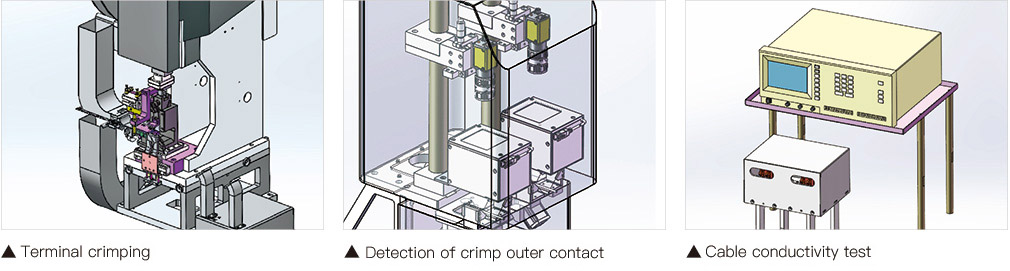

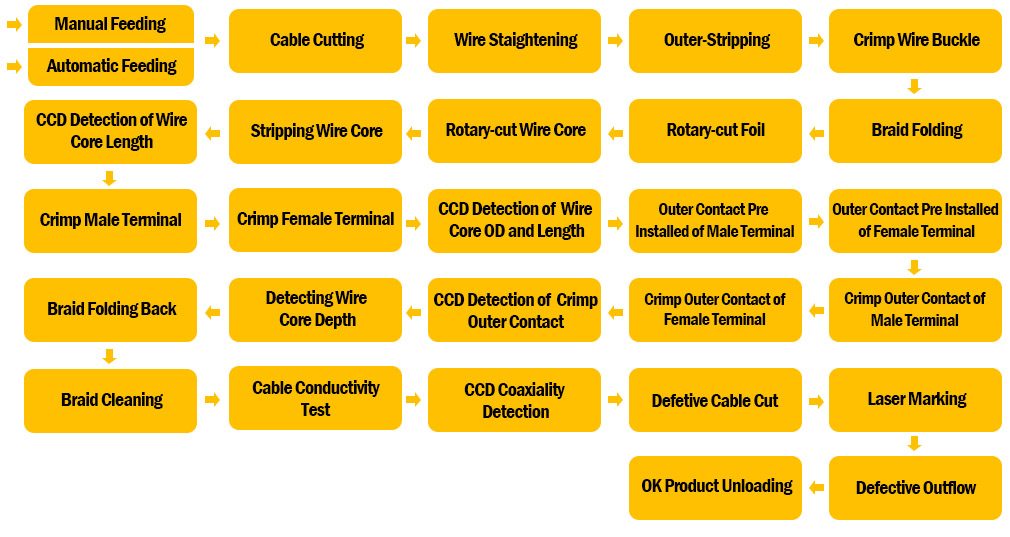

2. Adopts CNC human-computer interaction system, it equipped with pressure monitoring and CCD visual inspection module, automatic and efficient integration, the whole process of stable production process, high efficiency, can greatly improve product consistency, save time and labor.

3.The whole production line adopts modular design and precision servo drive mechanism, each module can work independently, support non-standard customization, and flexibly expand a number of additional functions.

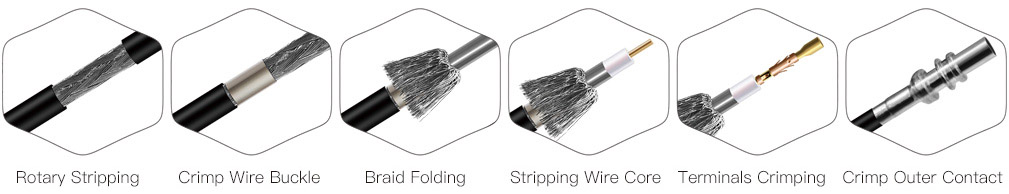

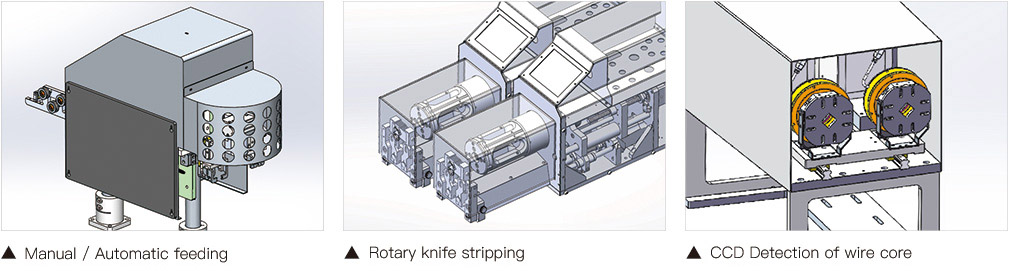

4. Using rotary precision cutting and stripping, carrying a number of CCD visual positioning and inspection, the introduction of the central terminal using EPSON robot with high-precision double servo terminals of precise crimping.

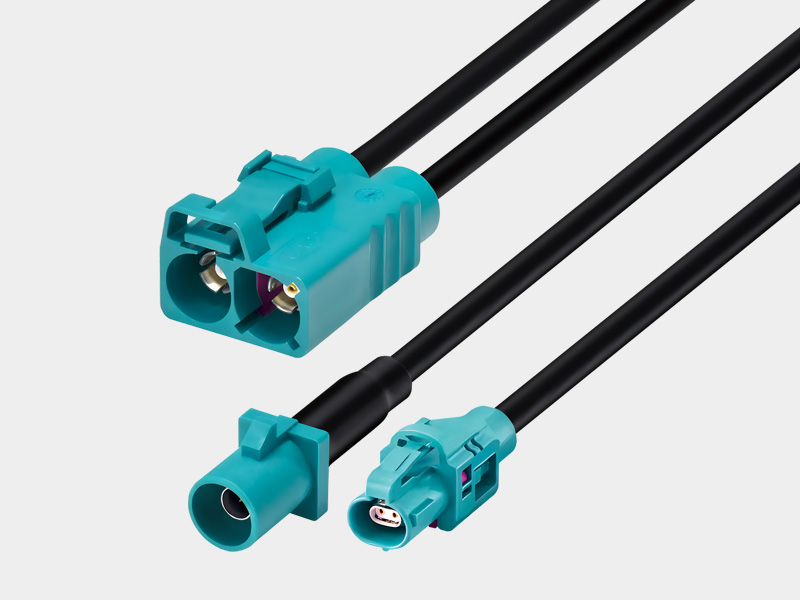

5. This equipment can be widely used in automatic processing of Fakra wire harness in the fields of vehicle communication, remote diagnosis, audio equipment, broadcast antenna and so on.
